Assembly

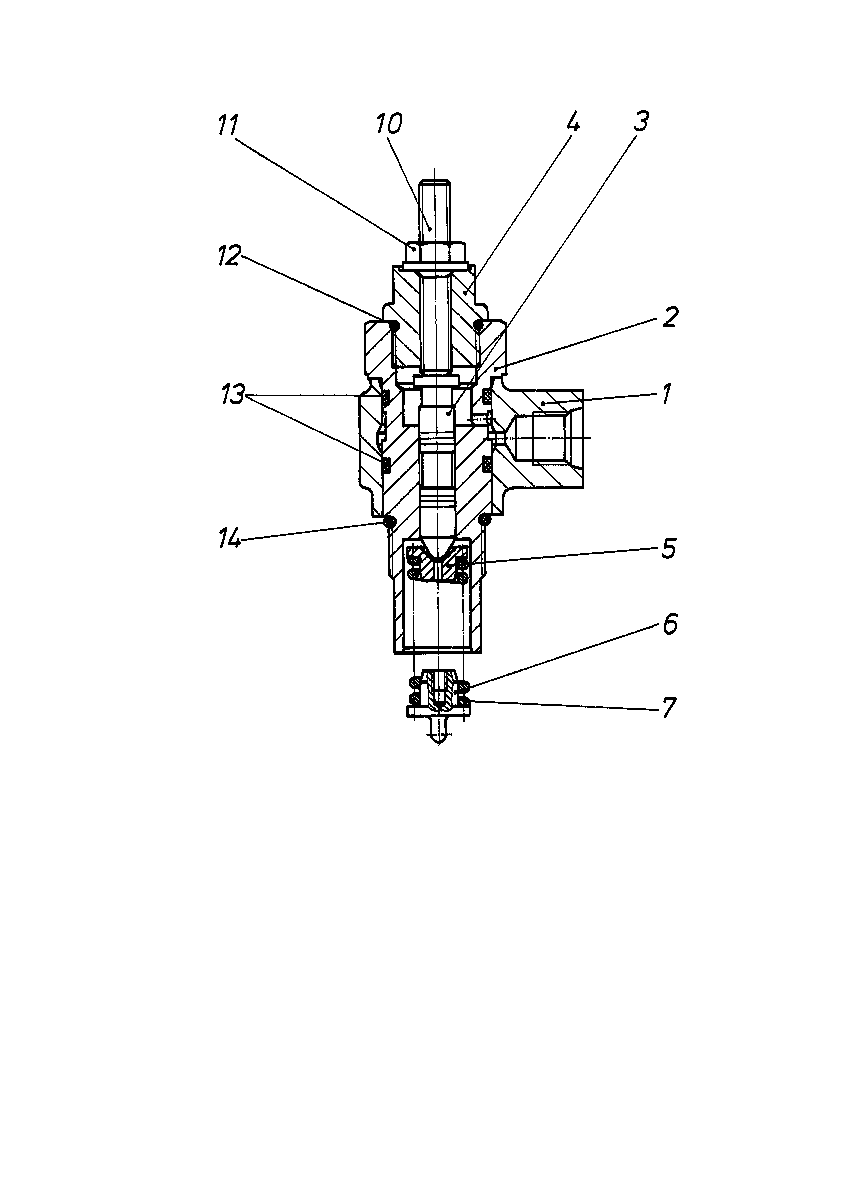

ADJUSTING PARTR909427960
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419399 | CONNECTING PIECE | 1 | |
| 2 | R909430466 | THREADED PART | 1 | |
| 3 | R909430465 | PISTON | 1 | |
| 4 | R909408860 | SCREW PLUG | 1 | |
| 5 | R909421369 | SPRING DISK | 1 | |
| R909426433 | SPRING DISK | 1 | ||
| 7 | R909426687 | COMPRESSION SPRING | 1 | |
| R909152115 | SETSCREW | 1 | ||
| 11 | R909152707 | SEALING NUTD | 1 | |
| 12 | R909083758 | O-RINGD | 1 | |
| 13 | R909083761 | O-RINGD | 2 | |
| 14 | R909086517 | O-RINGD | 1 |
