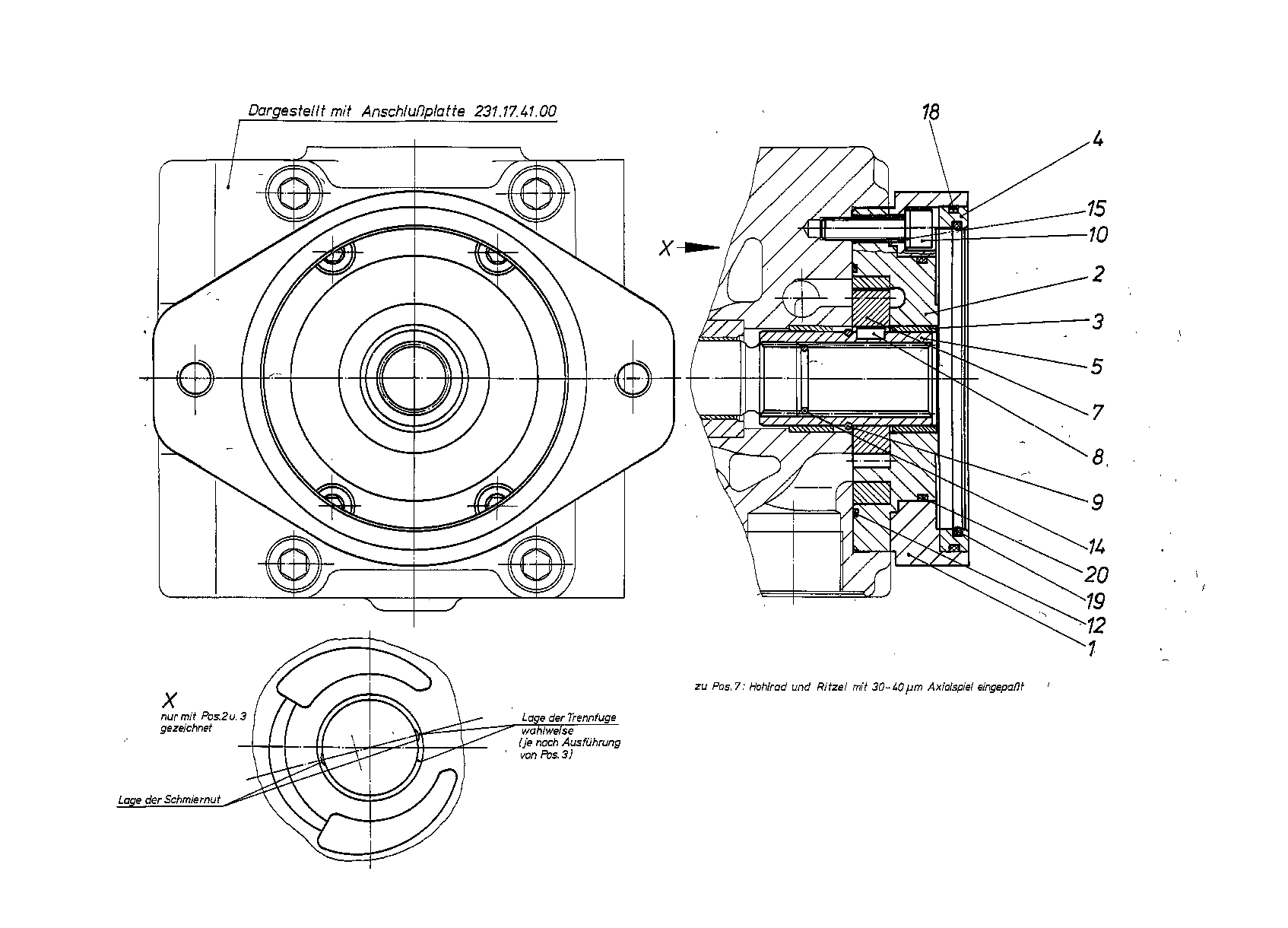

Assembly
INTERNAL GEAR PUMPR909428101
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430866 | INTERMEDIATE FLANGE | 1 | ||
| R909439482 | PUMP COVER | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909430501 | LOCATING RING | 1 | ||
| R909426032 | THROUGH DRIVE SHAFT | 1 | ||
| R902006254 | WHEEL SET | 1 | ||
| R902025645 | PARALLEL KEY | 1 | ||
| R909156741 | SNAP RING | 1 | ||
| R909087242 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R909086547 | O-RINGD | 1 | ||
| R909154589 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
