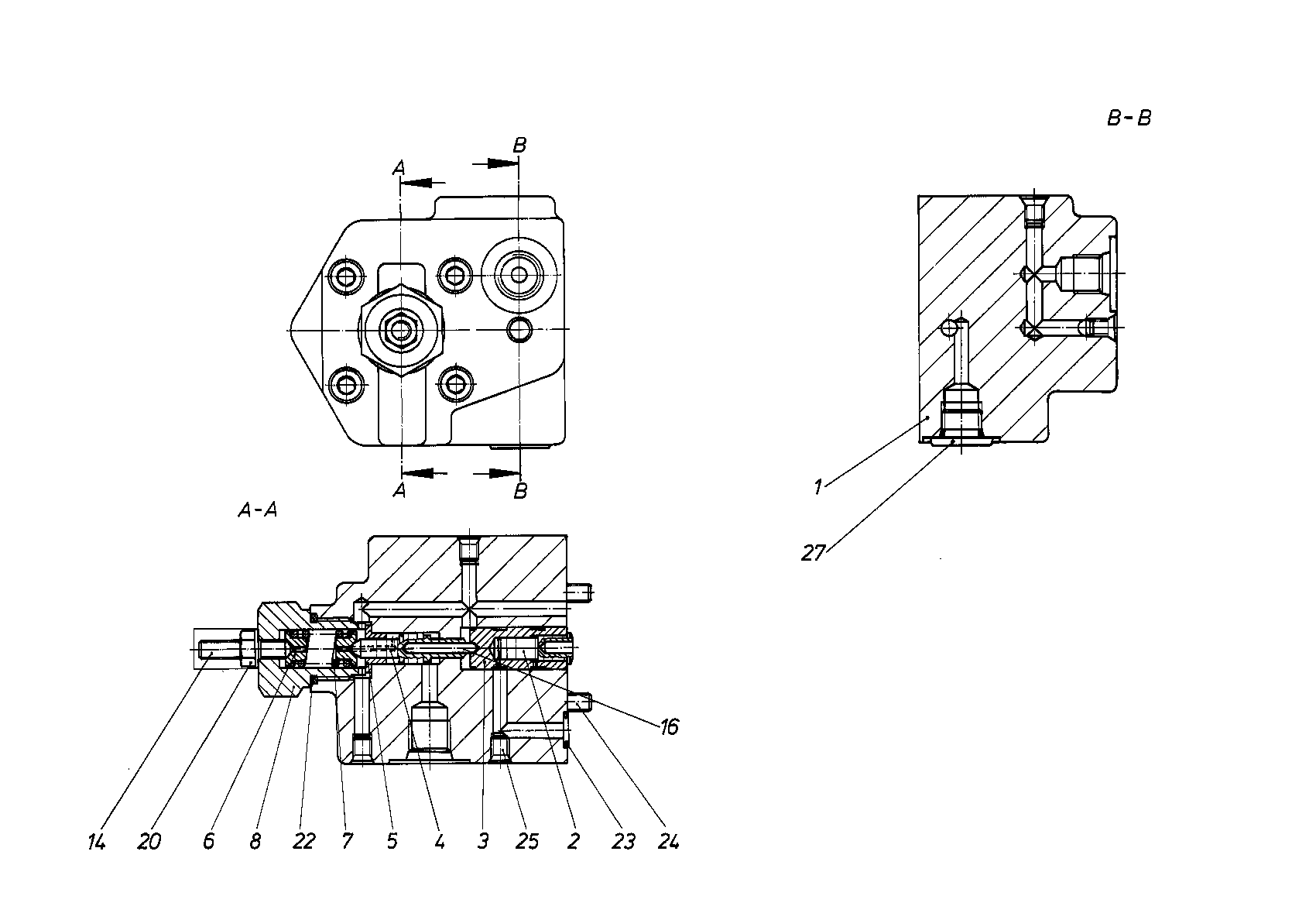

Assembly
CONTROL UNITR909428130
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432593 | CONTROL HOUSING | 1 | |
| 2 | R909430661 | CONTROL PISTON | 1 | |
| 3 | R909430557 | CONTROL SLEEVE | 1 | |
| R909431943 | POSITIONING PISTON | 1 | ||
| 5 | R909430650 | GUIDE BUSHING | 1 | |
| 6 | R909430649 | SPRING DISK | 2 | |
| 7 | R909430587 | COMPRESSION SPRING | 1 | |
| 8 | R909430648 | SCREW PLUG | 1 | |
| R909420991 | SETSCREW | 1 | ||
| R909431195 | PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| 22 | R909083757 | O-RINGD | 1 | |
| 23 | R909086498 | O-RINGD | 2 | |
| 24 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 25 | R909831318 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909153371 | SCREW PLUGD | 1 |
