Assembly

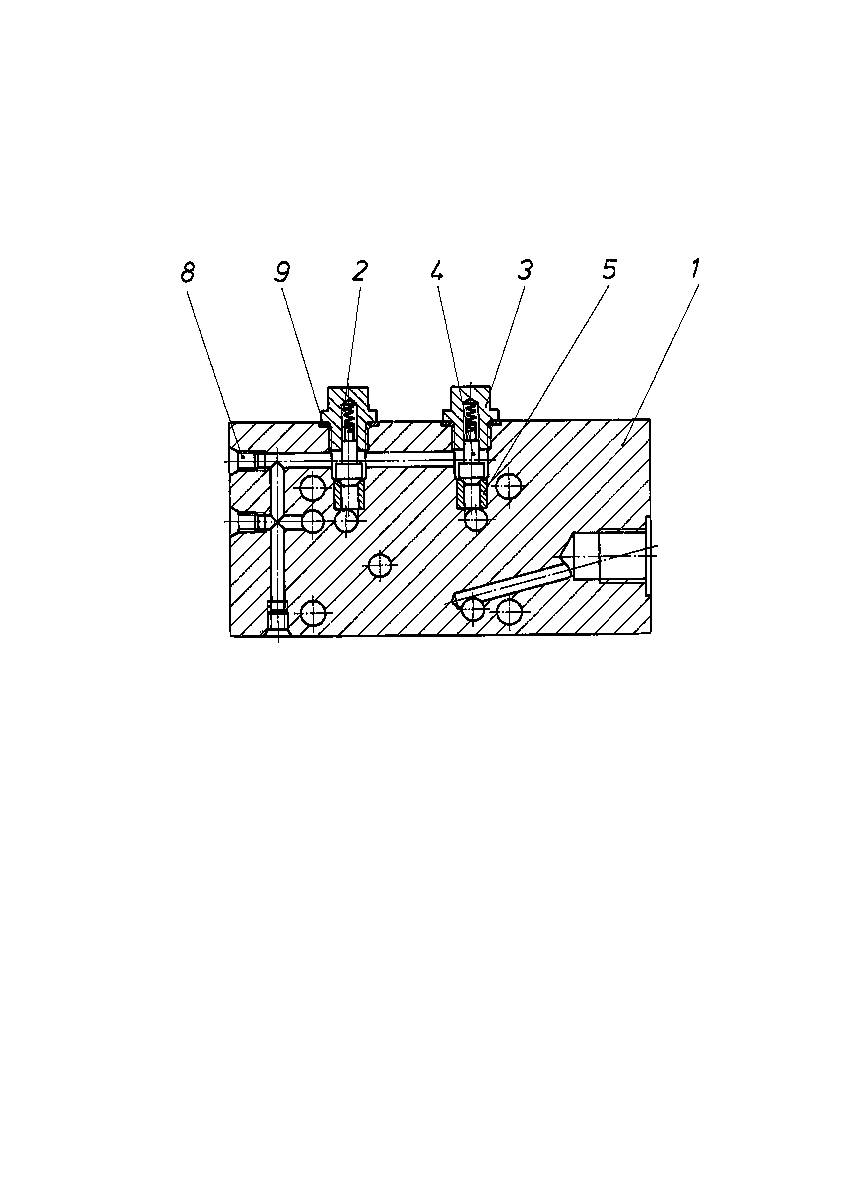

SHUTTLE VALVER909428477
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909430799 | INTERMEDIATE PLATE | 1 | ||
| R909056836 | COMPRESSION SPRING | 2 | ||
| R909415580 | SCREW PLUG | 2 | ||
| R909415579 | VALVE CONE | 2 | ||
| R909415815 | BUSHING | 2 | ||
| 8 | R909831317 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909152725 | SEAL RINGD | 2 |
