Assembly

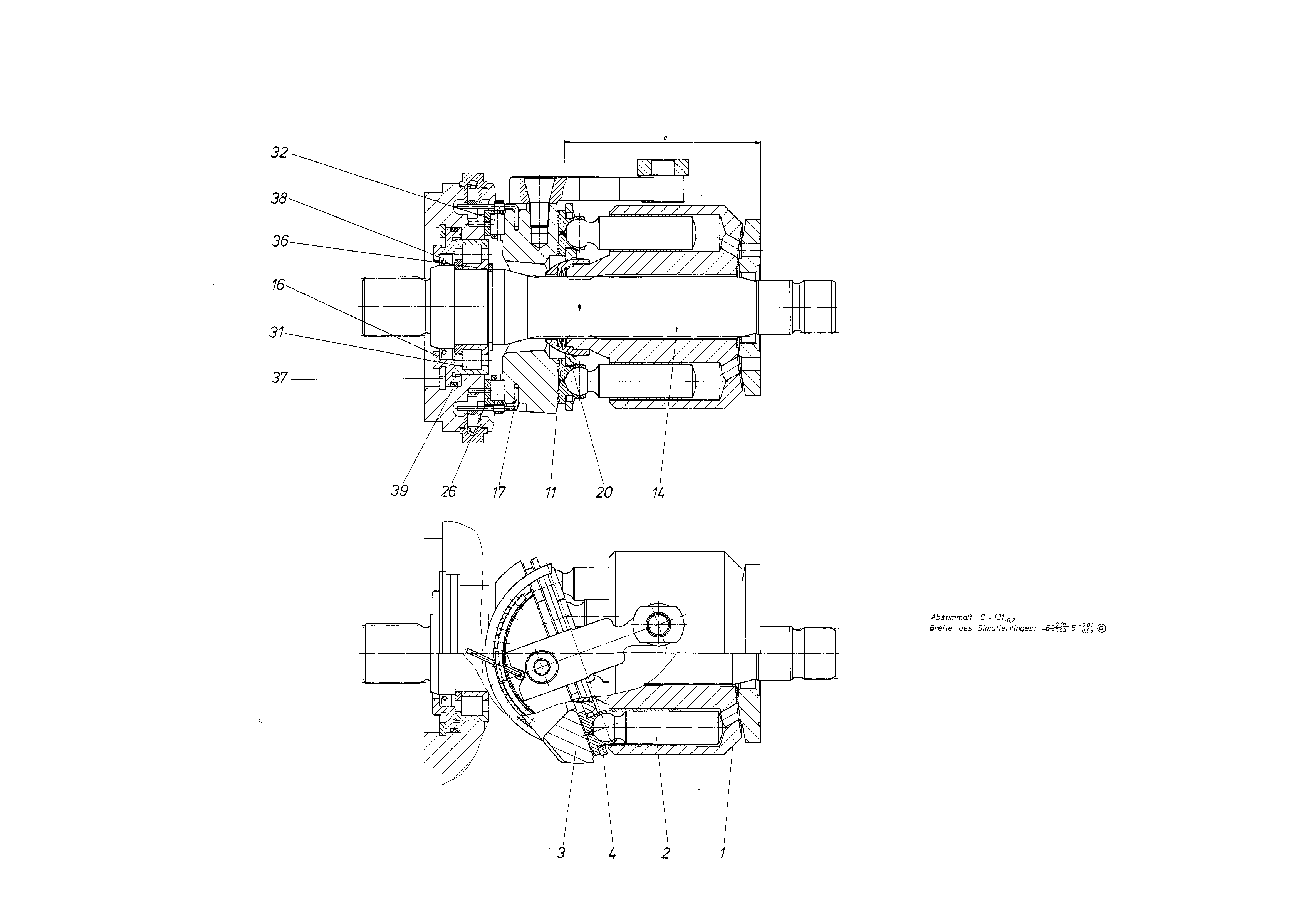

ROTARY GROUPR909428497
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428498 | DUMMY Assembly parts list →L | 1 | ||
| R902076829 | PISTON PAD | 9 | ||
| R909421591 | CRADLE Assembly parts list →L | 1 | ||
| R909419745 | RETAINING PLATE | 1 | ||
| 11 | R909420512 | CUP-SPRING STACK | 1 | |
| R909426428 | DRIVE SHAFT | 1 | ||
| R909421067 | LOCKING RING | 1 | ||
| R909421418 | WIRE | 2 | ||
| R909420508 | SHIM RING | 1 | ||
| R909420509 | SHIM RING | 1 | ||
| R909420510 | SHIM RING | 1 | ||
| R909420511 | SHIM RING | 1 | ||
| R909418524 | BEARING SHELL PAIR | 1 | ||
| 31 | R902603914 | CYL. ROLLER BEARING | 1 | |
| R909830578 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R909154528 | RETAINING RING | 1 | ||
| R909154345 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909830132 | O-RINGD | 1 |
