Assembly

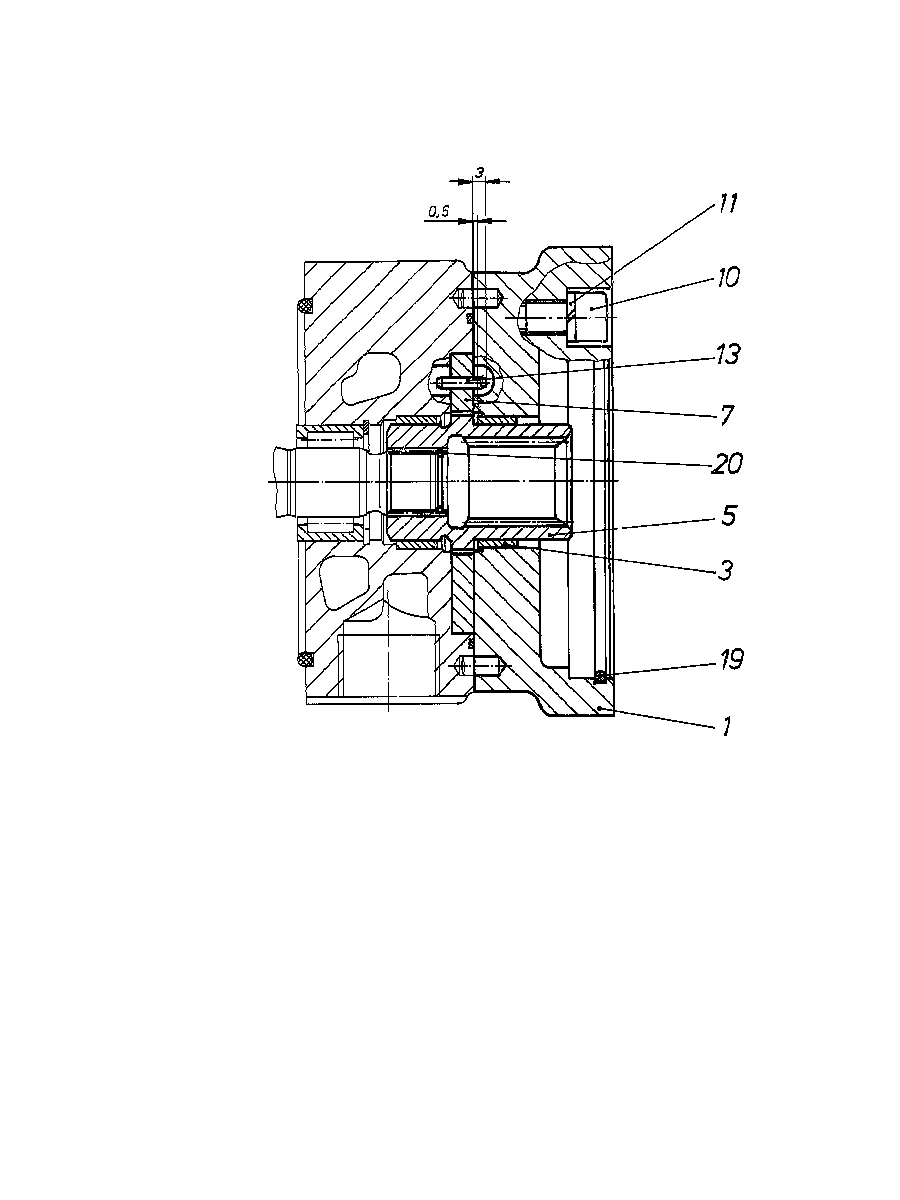

BELL HOUSINGR909428519
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419655 | INTERMEDIATE FLANGE | 1 | |
| 3 | R909419171 | BUSHING | 1 | |
| 5 | R909431322 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R909430171 | SEAL RING | 1 | |
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| 13 | R909154427 | SLOTTED SPRING PIN | 2 | |
| 19 | R909154416 | O-RINGD | 1 | |
| R909083381 | RETAINING RING | 1 |
