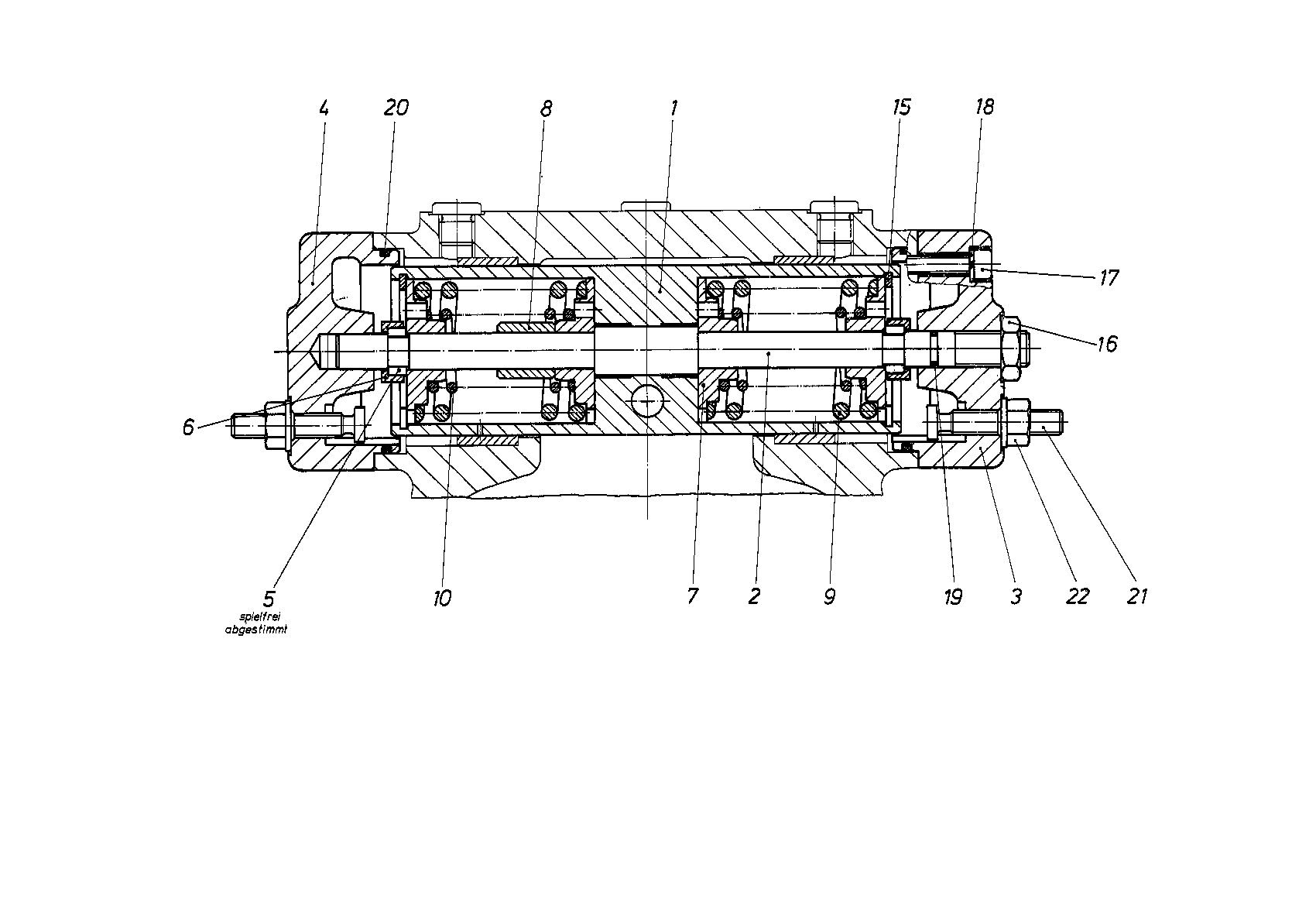

Assembly
CONTROLR909428590
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902015614 | POSITIONING PISTON | 1 | ||
| R909440406 | ROD | 1 | ||
| R909411955 | COVER | 1 | ||
| R909411954 | COVER | 1 | ||
| 5 | R902015508 | RING | 2 | |
| 5 | R902013493 | RING | 1 | |
| 5 | R902015509 | RING | 1 | |
| 5 | R902015510 | RING | 1 | |
| 5 | R902015511 | RING | 1 | |
| 5 | R902015512 | RING | 1 | |
| 5 | R902015514 | RING | 1 | |
| 5 | R902015513 | RING | 1 | |
| 6 | R909400470 | SLEEVE | 2 | |
| R909430922 | SPRING DISK | 4 | ||
| 8 | R909400472 | SPACER BUSHING | 2 | |
| 8 | R909400473 | SPACER BUSHING | 1 | |
| 8 | R909400474 | SPACER BUSHING | 1 | |
| R909400475 | COMPRESSION SPRING | 2 | ||
| R909400476 | COMPRESSION SPRING | 2 | ||
| 15 | R909084556 | RETAINING RING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R909085709 | O-RINGD | 1 | ||
| R909153320 | O-RINGD | 2 | ||
| 21 | R909416473 | STOP SCREW | 2 | |
| R909152707 | SEALING NUTD | 2 |
