Assembly

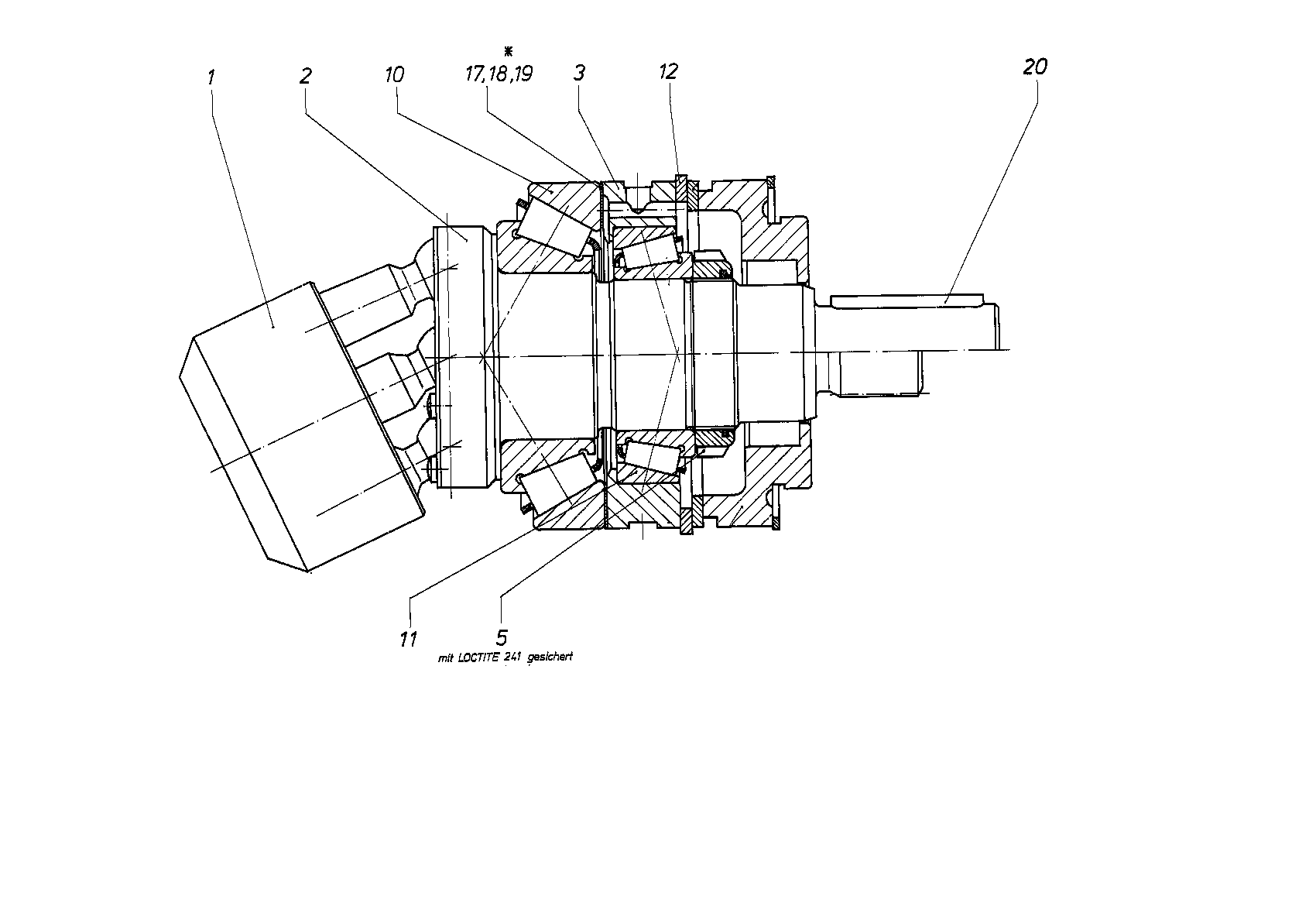

ROTARY GROUPR909428634
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434100 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909425786 | DRIVE SHAFT | 1 | ||
| R909410382 | BEARING RING | 1 | ||
| 5 | R913037930 | SLOTTED ROUND NUT | 1 | |
| R909154398 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154399 | TAPERED-ROLLER BEARING | 1 | |
| R909085128 | RETAINING RING | 1 | ||
| R909156275 | SHIM RING | 2 | ||
| R909156276 | SHIM RING | 1 | ||
| R909156304 | SHIM RING | 1 |
