Assembly

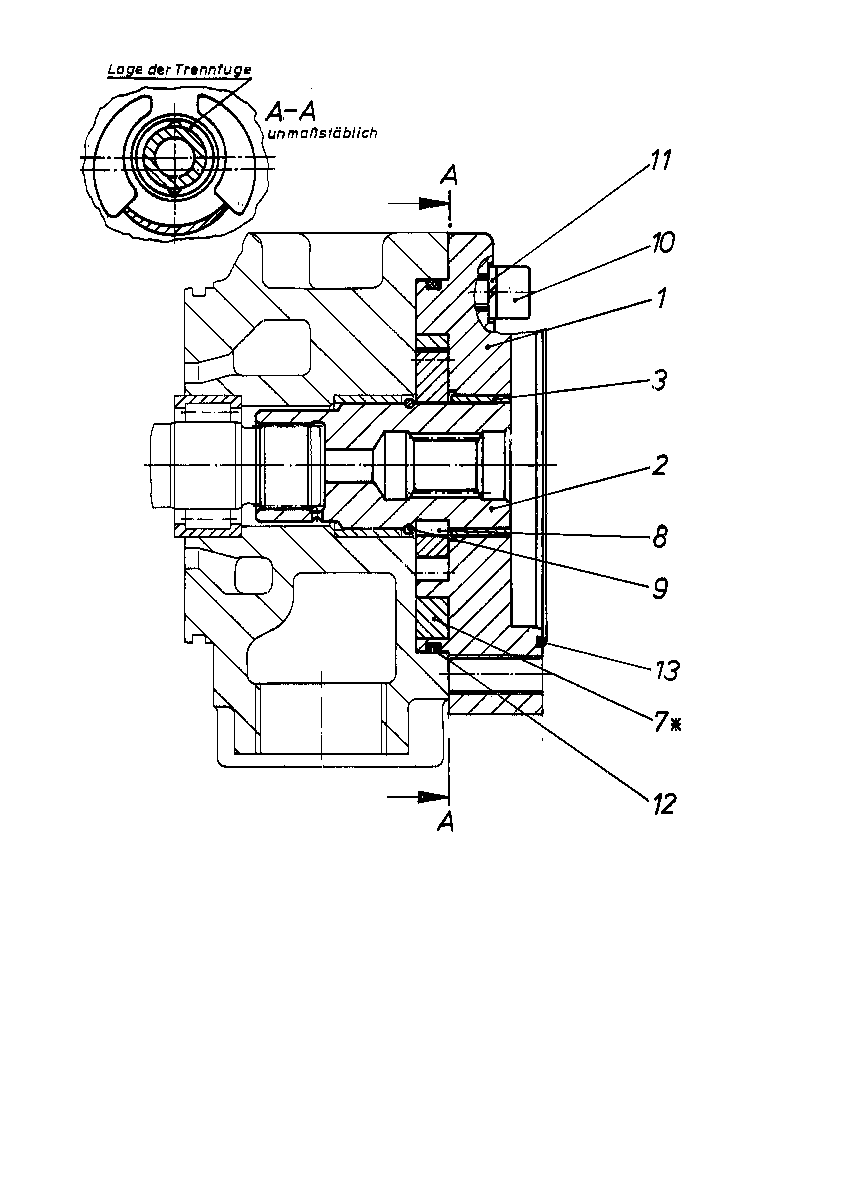

INTERNAL GEAR PUMP ASSEMBLYR909428762
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439859 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R909415567 | THROUGH DRIVE SHAFT | 1 | |
| 3 | R909449134 | BUSHING | 1 | |
| 7 | R902006253 | WHEEL SET | 1 | |
| 8 | R902252407 | PARALLEL KEY | 1 | |
| 9 | R909156741 | SNAP RING | 1 | |
| 10 | R909083036 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909086679 | O-RINGD | 1 | ||
| R909086679 | O-RINGD | 1 |
