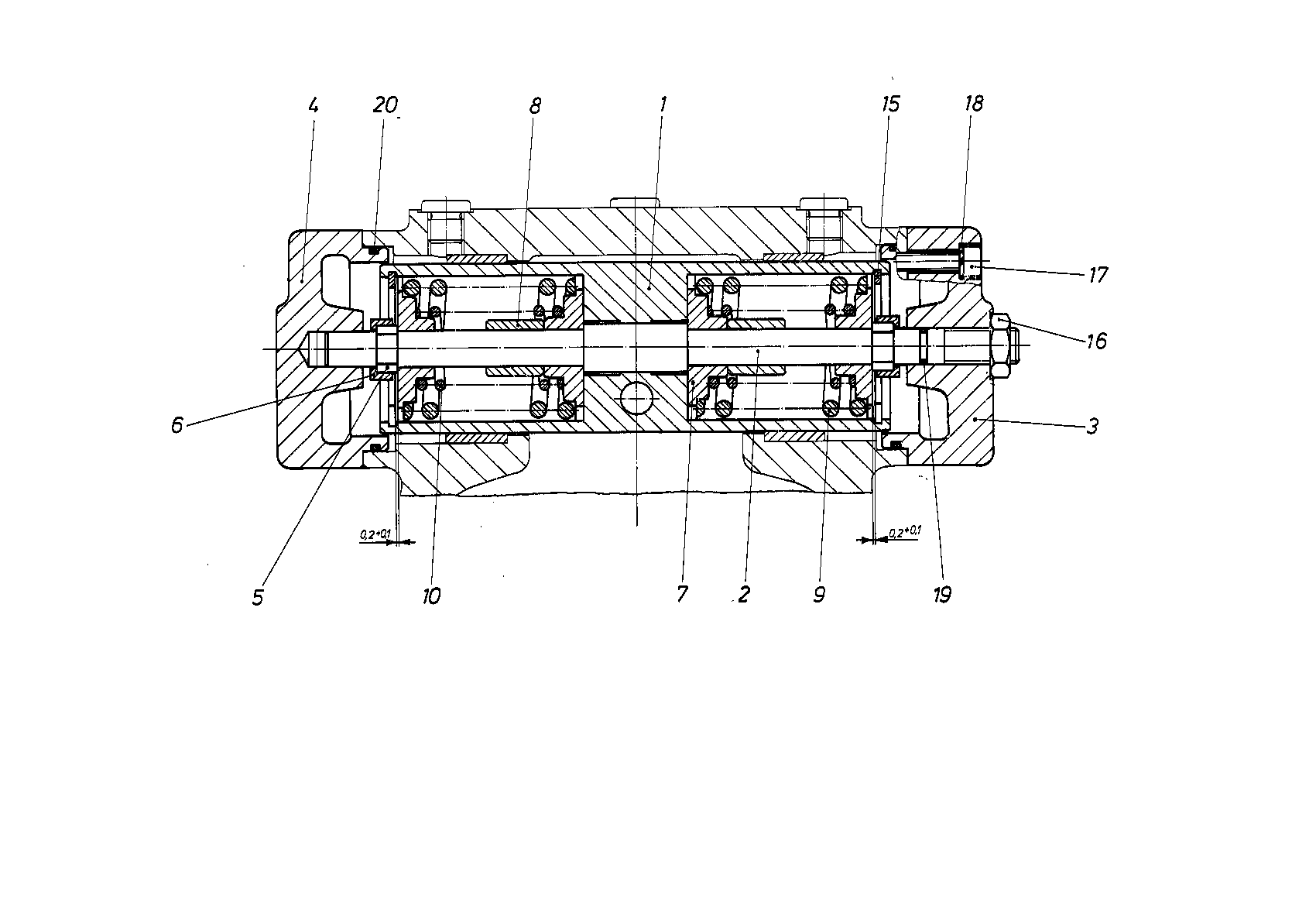

Assembly
CONTROLR909428782
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902010884 | POSITIONING PISTON | 1 | |
| 2 | R909440406 | ROD | 1 | |
| 3 | R909400462 | COVER | 1 | |
| 4 | R909400463 | COVER | 1 | |
| 5 | R909613711 | RING Assembly parts list →L | 1 | |
| 5 | R902015513 | RING | 1 | |
| 6 | R909400470 | SLEEVE | 2 | |
| 7 | R909400471 | SPRING DISK | 4 | |
| 8 | R909400473 | SPACER BUSHING | 2 | |
| 9 | R909400475 | COMPRESSION SPRING | 2 | |
| R909400476 | COMPRESSION SPRING | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R909085709 | O-RINGD | 1 | ||
| R909153320 | O-RINGD | 2 |
