Assembly

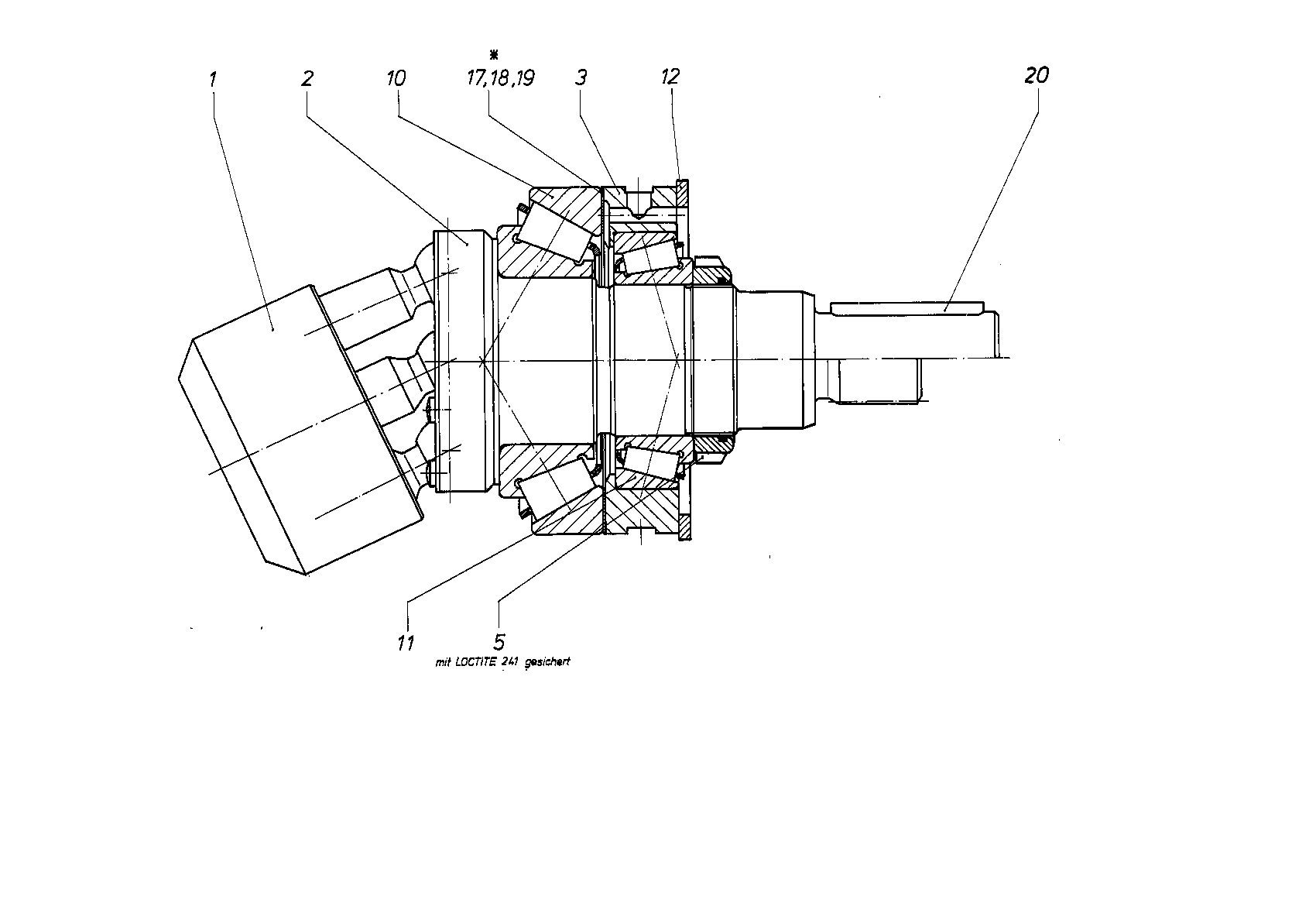

ROTARY GROUPR909428956
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909410285 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909425786 | DRIVE SHAFT | 1 | ||
| R909410382 | BEARING RING | 1 | ||
| 5 | R913037930 | SLOTTED ROUND NUT | 1 | |
| R909154398 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154399 | TAPERED-ROLLER BEARING | 1 | |
| R909085128 | RETAINING RING | 1 | ||
| 17 | R909156275 | SHIM RING | 2 | |
| 18 | R909156276 | SHIM RING | 1 | |
| 19 | R909156304 | SHIM RING | 1 |
