Assembly

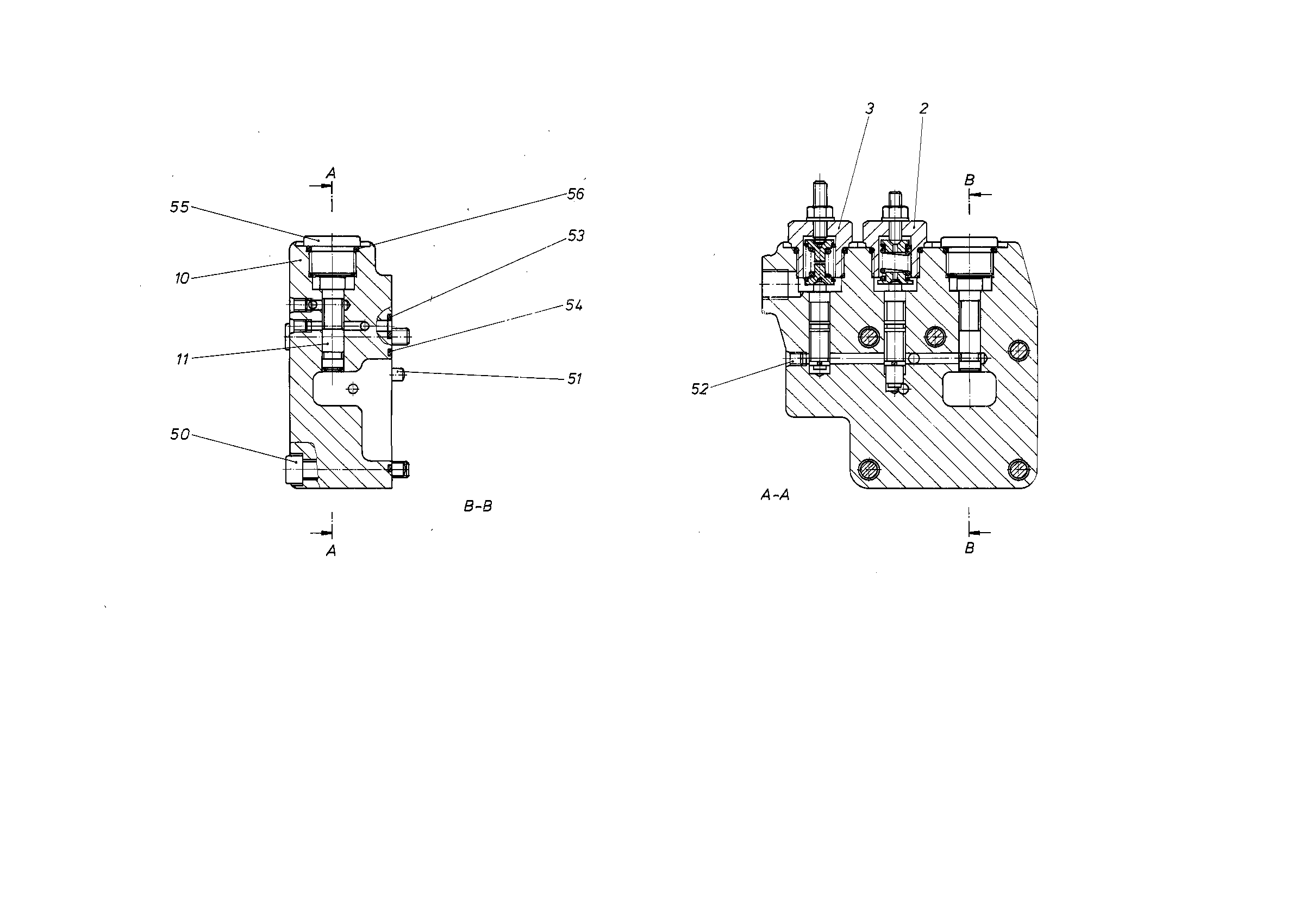

REGULATORR909429024
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909429026 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 3 | R909429027 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 10 | R909431364 | CONTROL HOUSING | 1 | |
| 11 | R909431326 | LOCKING BOLT | 1 | |
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| 52 | R909831318 | DOUBLE BREAK-OFF PLUG | 6 | |
| 53 | R909157512 | O-RINGD | 2 | |
| 54 | R902600656 | O-RINGD | 1 | |
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 |
