Assembly

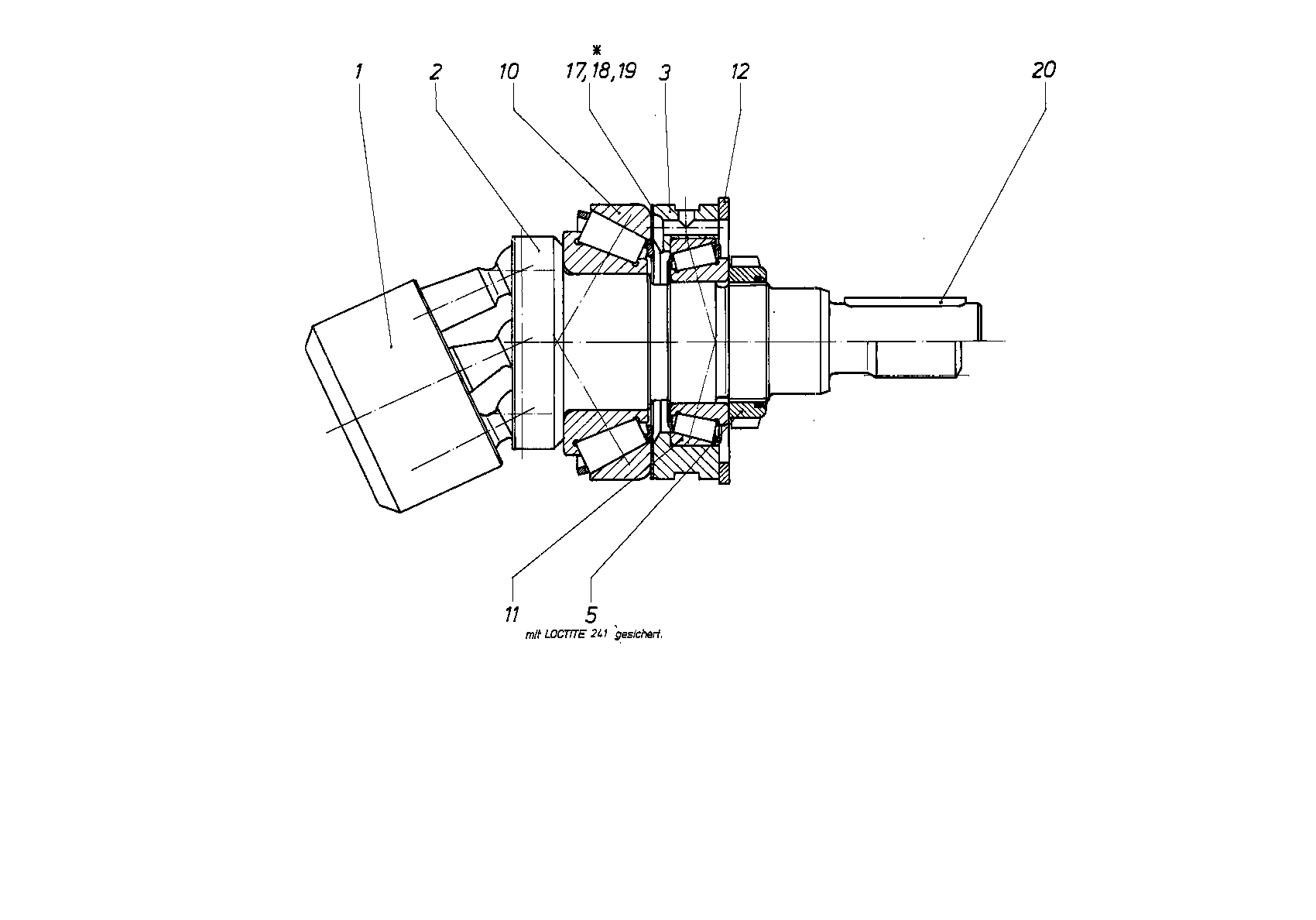

ROTARY GROUPR909429035
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909434099 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909425887 | DRIVE SHAFT | 1 | ||
| R909408886 | BEARING RING | 1 | ||
| 5 | R909156220 | SLOTTED ROUND NUT | 1 | |
| R909154685 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154686 | TAPERED-ROLLER BEARING | 1 | |
| R909083416 | RETAINING RING | 1 | ||
| R909084588 | SHIM RING | 2 | ||
| R909084589 | SHIM RING | 1 | ||
| R909153821 | SHIM RING | 1 |
