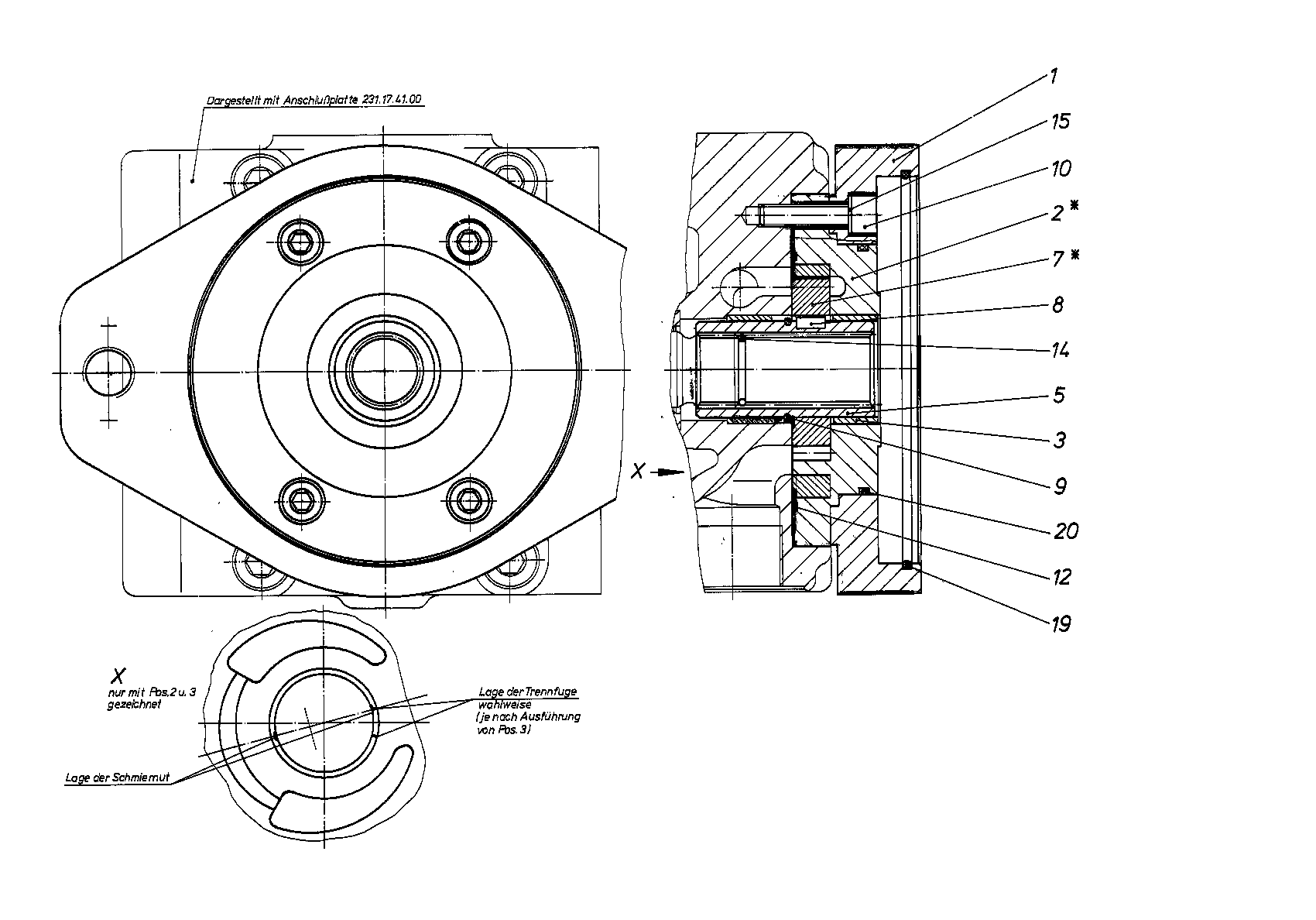

Assembly
INTERNAL GEAR PUMPR909429083
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909435041 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909439482 | PUMP COVER | 1 | |
| 3 | R902260545 | BUSHING | 1 | |
| R902252295 | THROUGH DRIVE SHAFT | 1 | ||
| 7 | R902006254 | WHEEL SET | 1 | |
| 8 | R902025645 | PARALLEL KEY | 1 | |
| 9 | R913057533 | SNAP RING | 1 | |
| 10 | R909087242 | SOCKET HEAD CAP SCREW | 4 | |
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| 15 | R909152493 | SEAL RINGD | 4 | |
| R909085364 | O-RINGD | 1 | ||
| 20 | R909083790 | O-RINGD | 1 |
