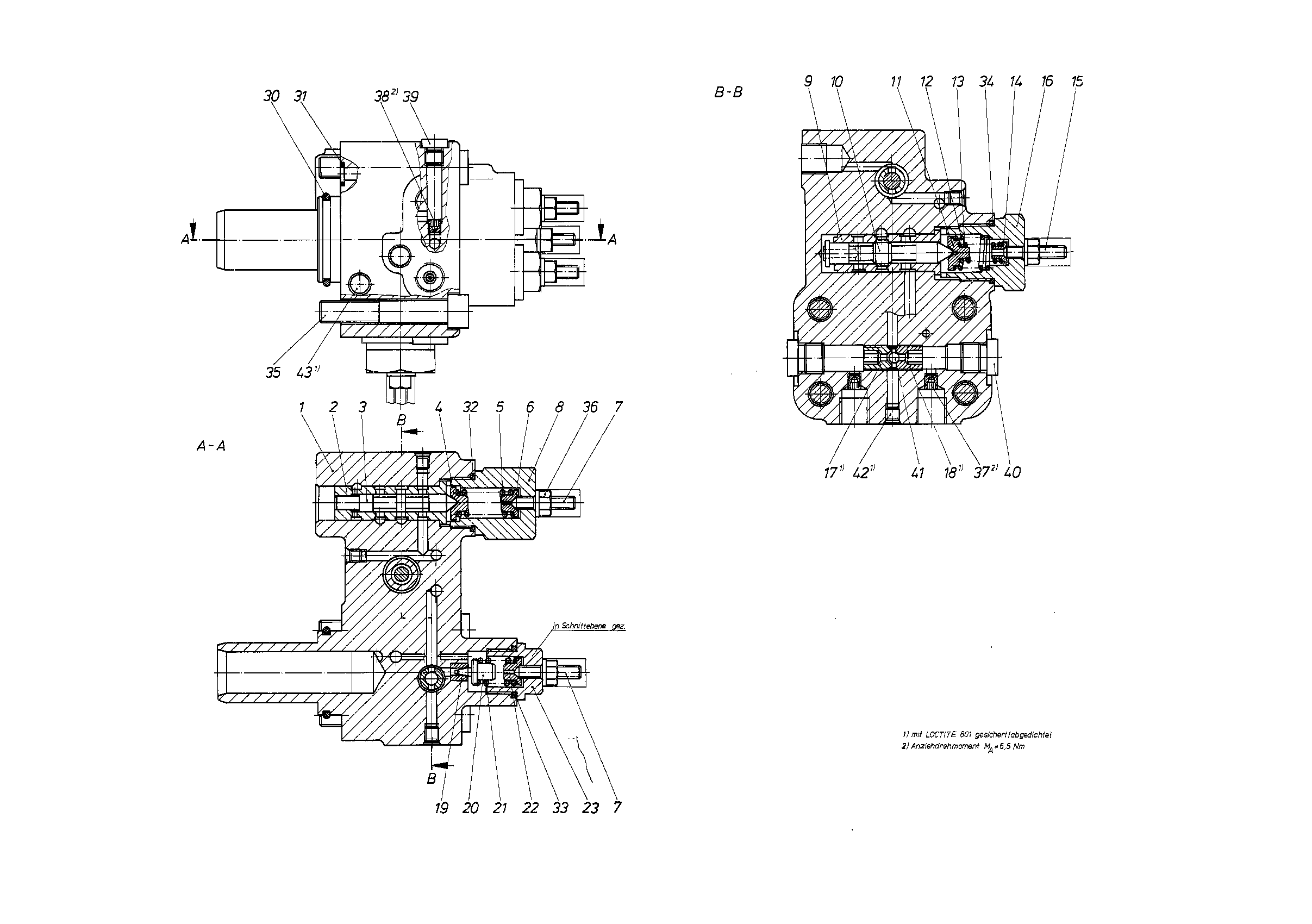

Assembly
CONTROL MODULER909429188
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432701 | CONTROL HOUSING | 1 | ||
| R909431602 | CONTROL SLEEVE | 1 | ||
| R909431603 | CONTROL PISTON | 1 | ||
| R909431526 | SPRING DISK | 1 | ||
| R909420415 | COMPRESSION SPRING | 1 | ||
| R909449205 | SPRING DISK | 1 | ||
| R909420991 | SETSCREW | 2 | ||
| R909426260 | SCREW PLUG | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R909414362 | COMPRESSION SPRING | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909430993 | SCREW PLUG | 1 | ||
| R909415901 | VALVE PIN | 1 | ||
| R909415902 | VALVE PIN | 1 | ||
| R909415904 | BUSHING | 2 | ||
| R909060267 | VALVE CONE | 2 | ||
| R909431771 | COMPRESSION SPRING | 2 | ||
| R909449205 | SPRING DISK | 2 | ||
| R909443089 | SCREW PLUG | 2 | ||
| R909085545 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 3 | ||
| R909086517 | O-RINGD | 1 | ||
| R909083758 | O-RINGD | 2 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152425 | SEALING NUTD | 4 | ||
| R909156492 | NOZZLE | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083258 | BALL | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 |
