Assembly

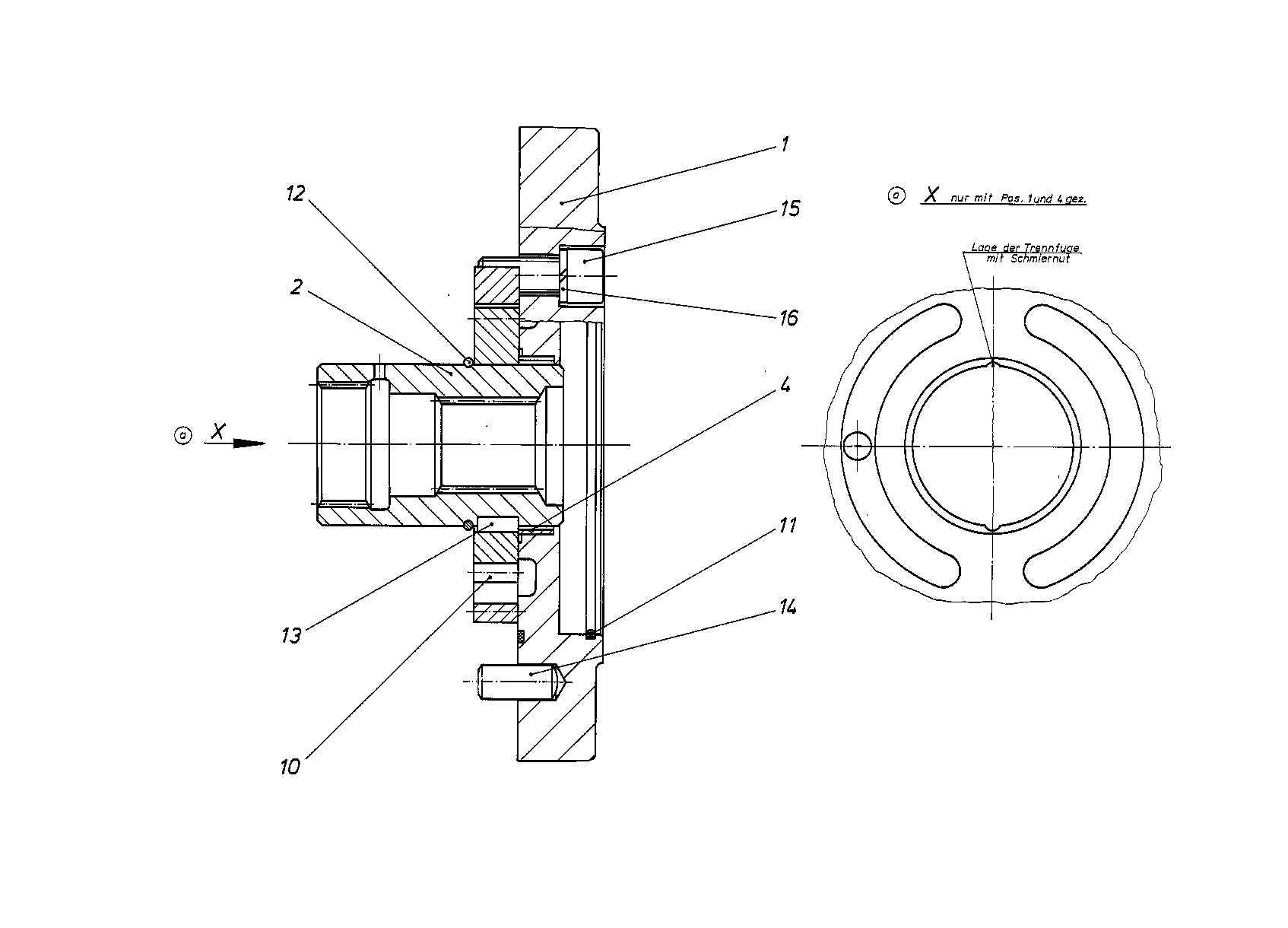

INTERNAL GEAR PUMP ASSEMBLYR909429456
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909431723 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909431724 | THROUGH DRIVE SHAFT | 1 | |
| R909425521 | BUSHING | 1 | ||
| R909425579 | GEROTOR PART | 1 | ||
| R913002054 | O-RINGD | 2 | ||
| R909152772 | SNAP RING | 1 | ||
| R909083967 | PARALLEL KEY | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083252 | SPRING LOCK WASHER | 4 |
