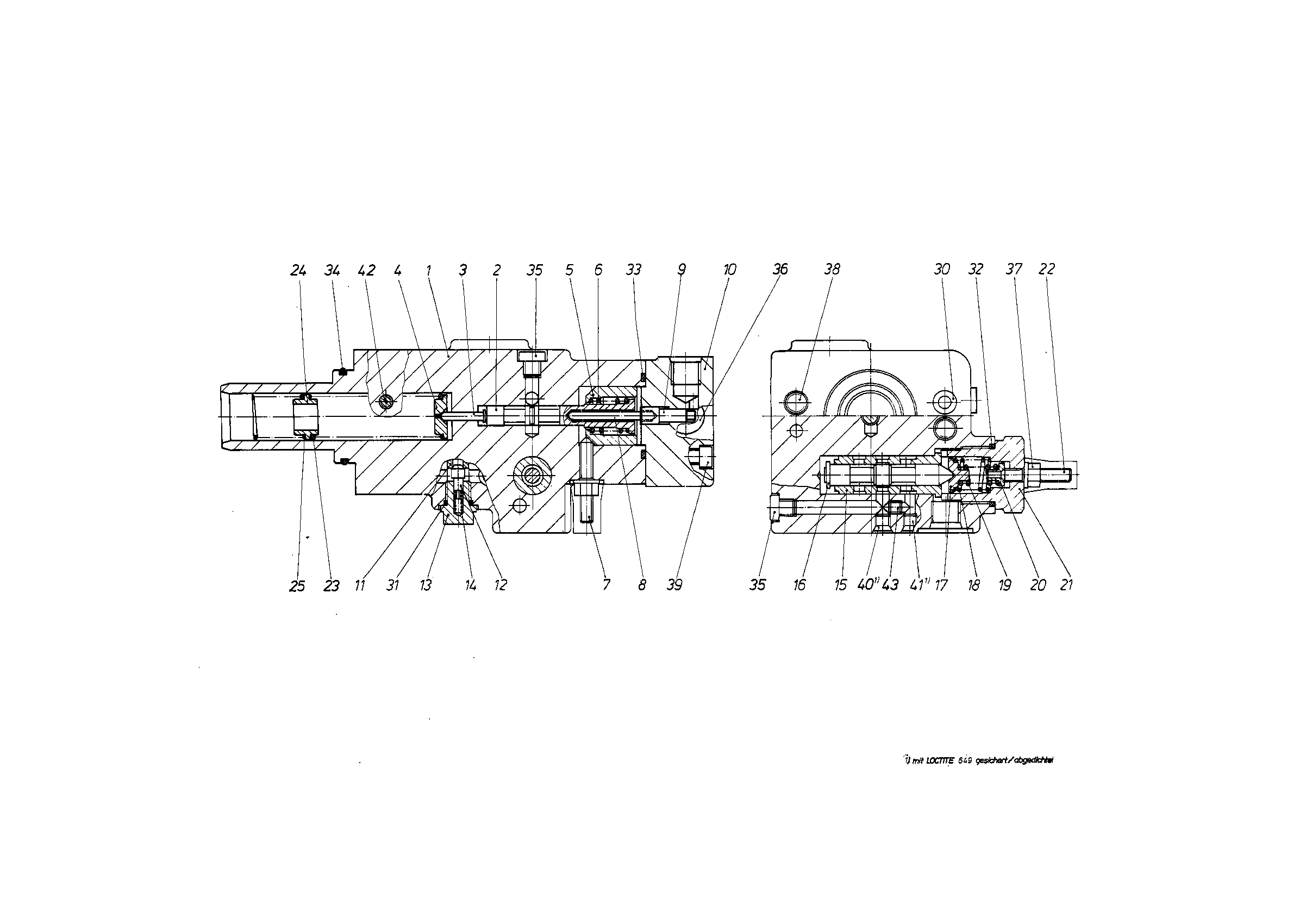

Assembly
CONTROL MODULER909429463
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909431755 | CONTROL HOUSING | 1 | ||
| R909431737 | CONTROL PISTON | 1 | ||
| R909426556 | PIN | 1 | ||
| 4 | R909431738 | SPRING DISK | 1 | |
| 5 | R909426486 | SPRING BUSH | 1 | |
| 6 | R909425802 | COMPRESSION SPRING | 1 | |
| R909420992 | SETSCREW | 1 | ||
| R909421330 | PIN | 1 | ||
| 9 | R909431756 | CONTROL PISTON | 1 | |
| 10 | R909431739 | SEALING COVER | 1 | |
| 11 | R909425801 | BUSHING | 2 | |
| 12 | R909415579 | VALVE CONE | 2 | |
| 13 | R902035187 | SCREW PLUG | 2 | |
| R909426948 | COMPRESSION SPRING | 2 | ||
| 15 | R909431037 | CONTROL SLEEVE | 1 | |
| R909431035 | CONTROL PISTON | 1 | ||
| 17 | R909418698 | SPRING DISK | 1 | |
| 18 | R909410091 | COMPRESSION SPRING | 1 | |
| 19 | R909414362 | COMPRESSION SPRING | 1 | |
| 20 | R909422325 | SPRING DISK | 1 | |
| 21 | R909430993 | SCREW PLUG | 1 | |
| R909421402 | SETSCREW | 1 | ||
| 23 | R909431750 | COMPRESSION SPRING | 1 | |
| 24 | R909431752 | SPRING DISK | 1 | |
| 25 | R909431751 | COMPRESSION SPRING | 1 | |
| 30 | R909086498 | O-RINGD | 4 | |
| 31 | R909083749 | O-RINGD | 2 | |
| 32 | R909083761 | O-RINGD | 1 | |
| R909083769 | O-RINGD | 1 | ||
| 34 | R909085545 | O-RINGD | 1 | |
| R909154024 | SCREW PLUGD | 3 | ||
| 36 | R909153371 | SCREW PLUGD | 1 | |
| 37 | R909152425 | SEALING NUTD | 2 | |
| R909083073 | SOCKET HEAD CAP SCREW | 2 | ||
| 39 | R909083025 | SOCKET HEAD CAP SCREW | 3 | |
| 40 | R909831319 | DOUBLE BREAK-OFF PLUG | 4 | |
| 41 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 42 | R909156493 | NOZZLE | 1 | |
| 43 | R909083490 | SETSCREW | 1 |
