Assembly

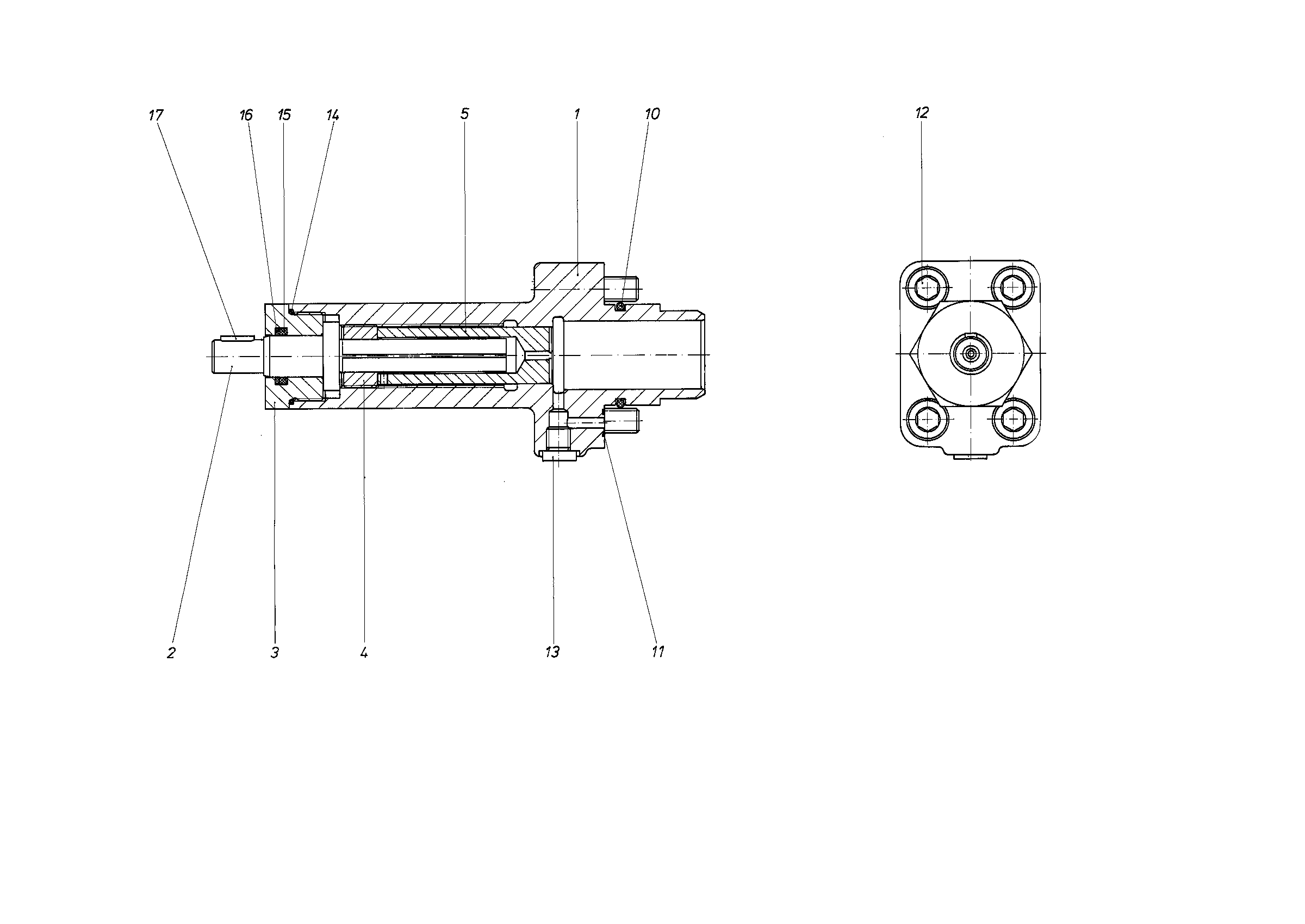

STROKE LIMITERR909429522
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909431665 | GUIDE COVER | 1 | ||
| 2 | R909419528 | CARRIER | 1 | |
| 3 | R909431777 | SCREW PLUG | 1 | |
| 4 | R909419530 | DRIVER SCREW | 1 | |
| 5 | R909431760 | PISTON | 1 | |
| R909083798 | O-RINGD | 1 | ||
| 11 | R909086380 | O-RINGD | 1 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| 15 | R909083752 | O-RINGD | 1 | |
| 16 | R909157995 | BACKUP RINGD | 1 | |
| R909153968 | PARALLEL KEY | 1 |
