Assembly

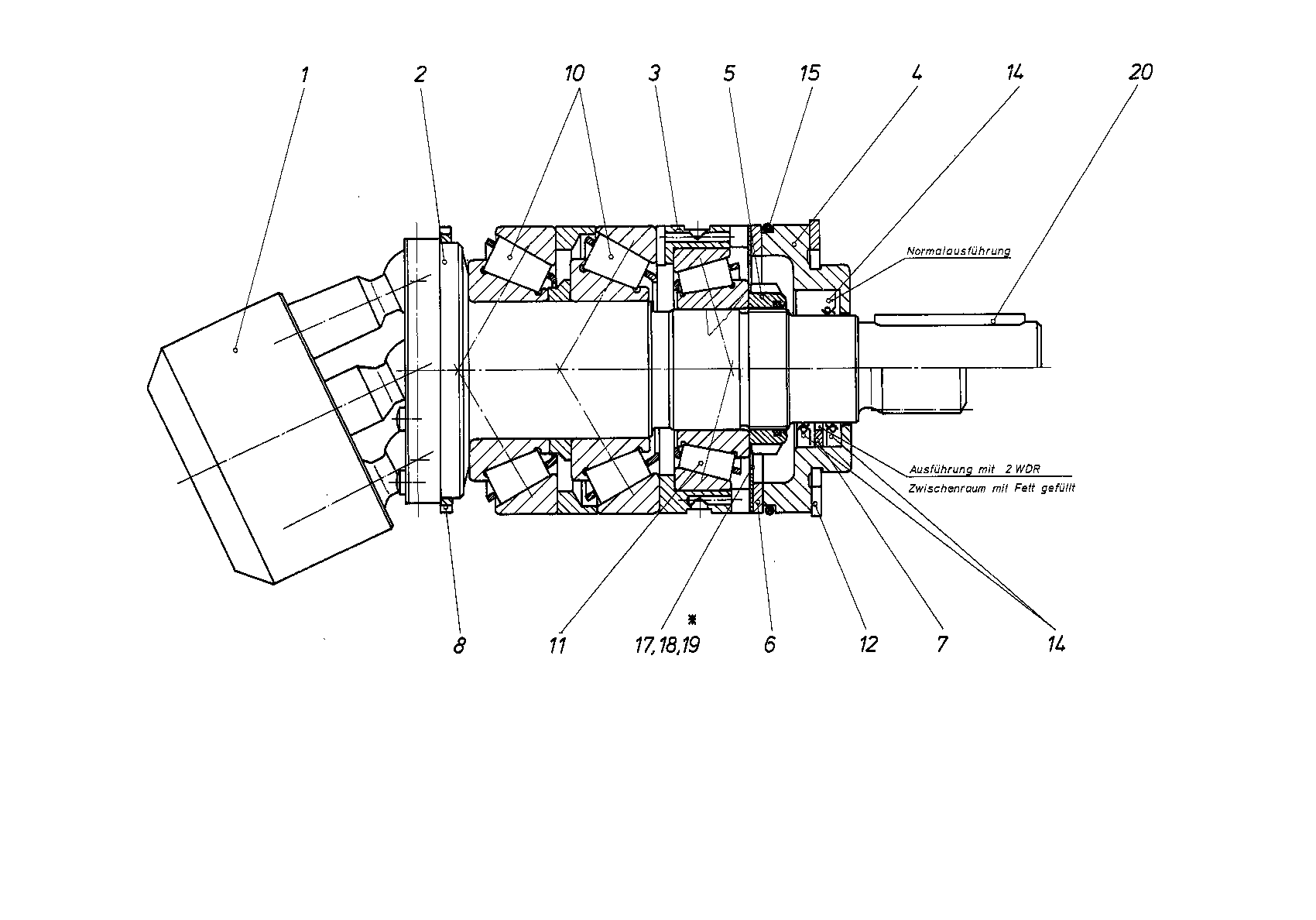

ROTARY GROUPR909429569
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434100 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909431826 | DRIVE SHAFT | 1 | ||
| R909411659 | BEARING RING | 1 | ||
| R909411658 | LOCKING RINGD | 1 | ||
| R909156220 | SLOTTED ROUND NUT | 1 | ||
| R909156465 | SUPPORTING DISC | 1 | ||
| 8 | R909436872 | ANNULAR GEAR | 1 | |
| R909154607 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151112 | TAPERED-ROLLER BEARING | 1 | |
| R909154609 | RETAINING RING | 1 | ||
| 14 | R909831661 | SHAFT SEALING RINGD | 1 | |
| R909083824 | O-RINGD | 1 | ||
| 17 | R909156448 | SHIM RING | 2 | |
| 18 | R909156463 | SHIM RING | 2 | |
| 19 | R909156464 | SHIM RING | 2 |
