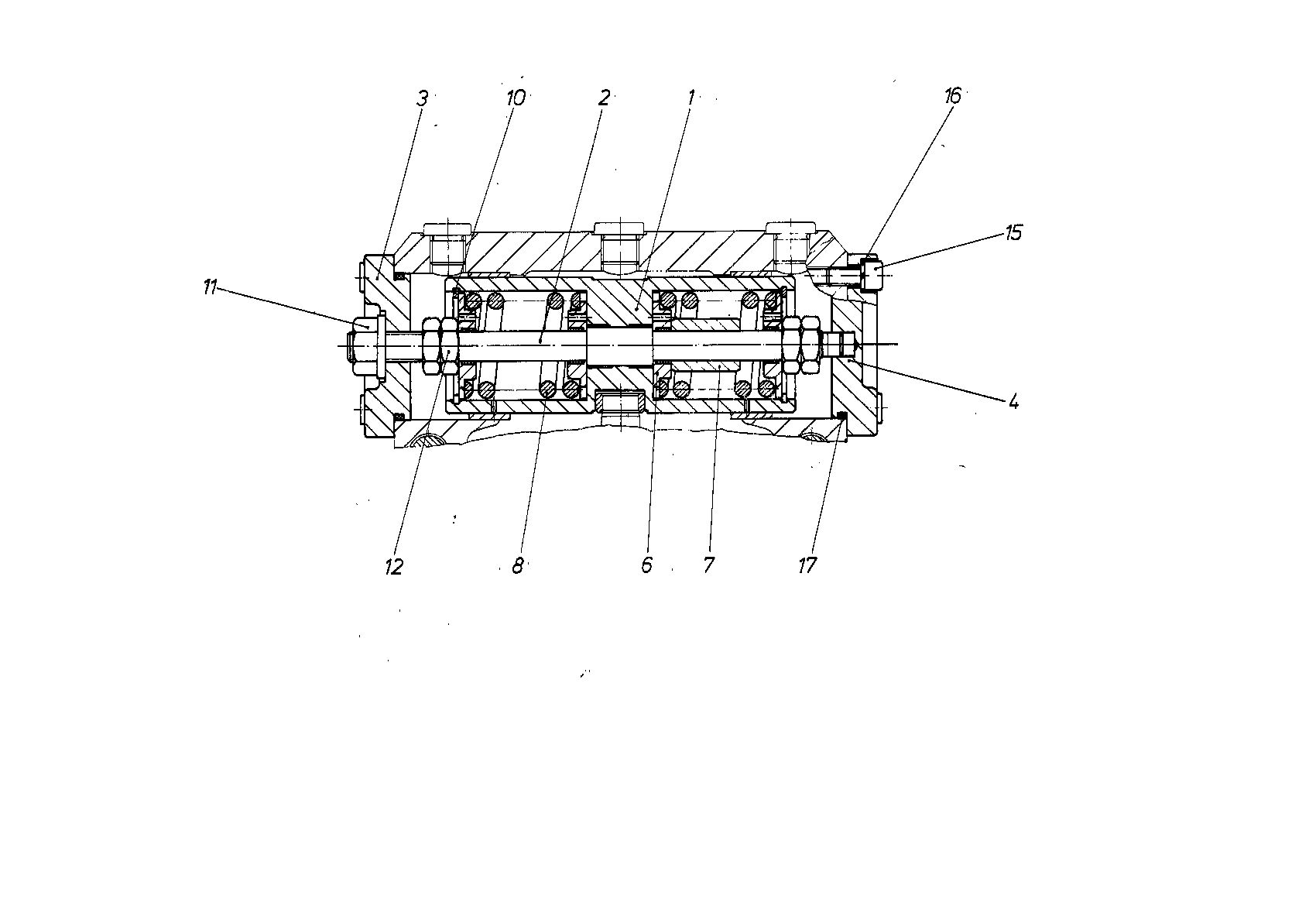

Assembly
CONTROLR909429591
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902002865 | POSITIONING PISTON | 1 | ||
| R909414459 | ROD | 1 | ||
| 3 | R909400422 | COVER | 1 | |
| R909414455 | COVER | 1 | ||
| R909429592 | SPRING DISK | 4 | ||
| R909078349 | SPACER BUSHING | 2 | ||
| R909078350 | SPACER BUSHING | 1 | ||
| R909078351 | SPACER BUSHING | 1 | ||
| 8 | R909420769 | COMPRESSION SPRING | 2 | |
| R909156214 | V-RING | 2 | ||
| 11 | R909153271 | SEALING NUTD | 1 | |
| R902017521 | HEXAGON NUT | 4 | ||
| 15 | R909083018 | SOCKET HEAD CAP SCREW | 8 | |
| 16 | R909083249 | SPRING LOCK WASHER | 8 | |
| 17 | R909831490 | O-RINGD | 2 |
