Assembly

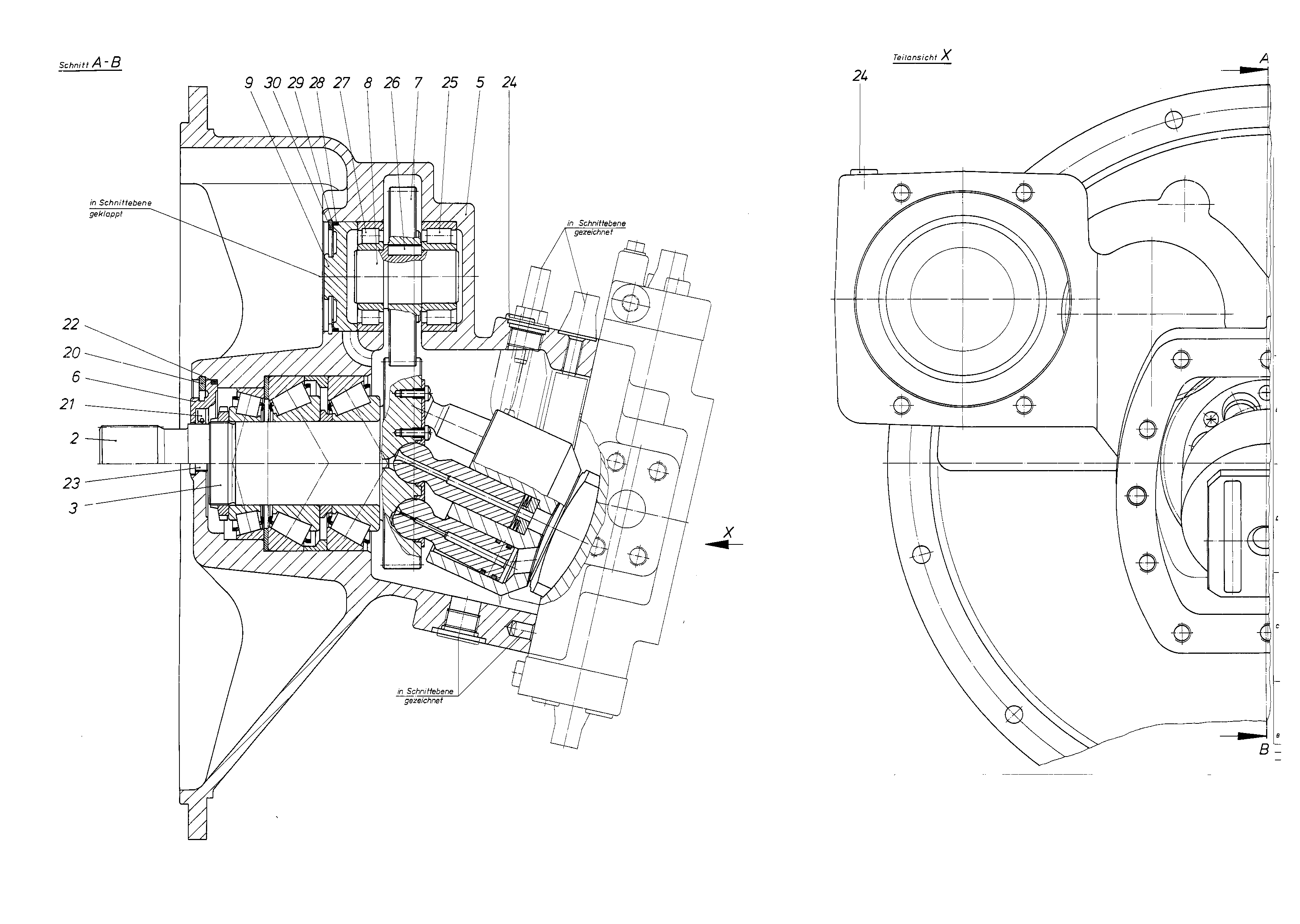

AXIAL-PISTON PUMPR909429668
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411736 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411737 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902075231 | PUMP HOUSING | 1 | ||
| R909652033 | LOCKING RING | 1 | ||
| R902110319 | TOOTHED WHEEL | 1 | ||
| R909422411 | PLUG-IN SHAFT | 1 | ||
| R909416254 | COVER | 1 | ||
| R909083418 | RETAINING RING | 1 | ||
| R909831233 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909084426 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909156923 | CYL. ROLLER BEARING | 1 | ||
| R909157352 | PARALLEL KEY | 1 | ||
| R909153323 | CYL. ROLLER BEARING | 1 | ||
| R909083788 | O-RINGD | 1 | ||
| R909086815 | SHIM RING | 1 | ||
| R909083412 | RETAINING RING | 1 |
