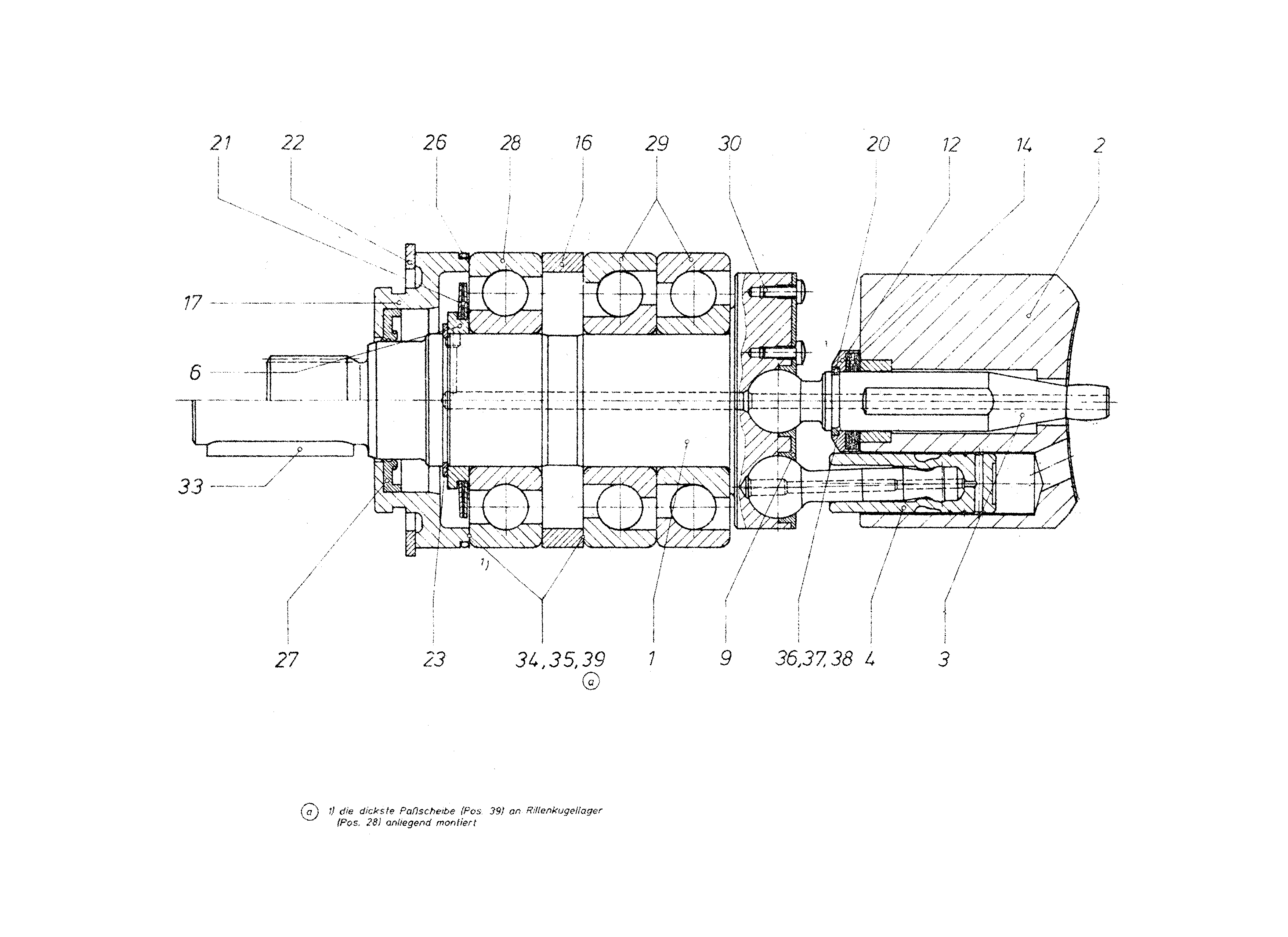

Assembly
ROTARY GROUPR909429675
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408843 | DRIVE SHAFT | 1 | ||
| R909402121 | CYLINDER Assembly parts list →L | 1 | ||
| R909063017 | CENTER PIN | 1 | ||
| R909063018 | SPRING DISK | 1 | ||
| R902072553 | RETAINING PLATE | 1 | ||
| R909063016 | SPRING DISK | 1 | ||
| R909063019 | DISC SPRING | 4 | ||
| R909063004 | SPACER BUSH | 1 | ||
| R909424243 | LOCKING RINGD | 1 | ||
| R909063020 | RING | 1 | ||
| R909006730 | SPECIAL DISK SPRING | 2 | ||
| R909085127 | RETAINING RING | 1 | ||
| R909150082 | RETAINING RING | 1 | ||
| R909150083 | O-RINGD | 1 | ||
| R909152970 | SHAFT SEALING RINGD | 1 | ||
| R909085481 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156034 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602395 | PAN-HEAD SCREW | 14 | ||
| R909150085 | PARALLEL KEY | 1 | ||
| R909150086 | SHIM RING | 2 | ||
| R909150087 | SHIM RING | 1 | ||
| R909087155 | SHIM RING | 1 | ||
| R909154090 | SHIM RING | 1 | ||
| R909154023 | SHIM RING | 1 |
