Assembly

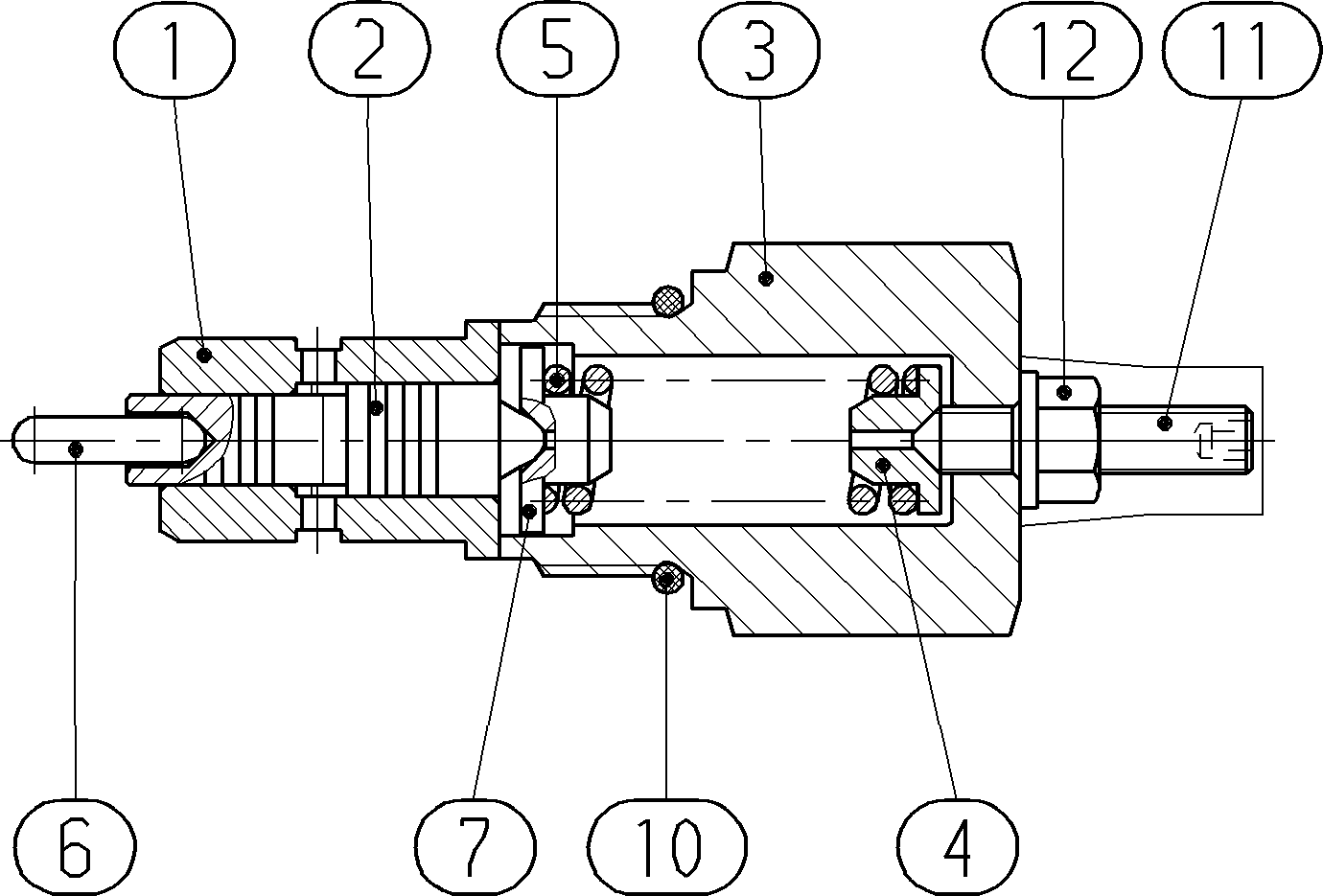

ADJUSTING PARTR909429744
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909431969 | GUIDE BUSHING | 1 | ||
| R909431970 | CONTROL PISTON | 1 | ||
| R909425333 | SCREW PLUG | 1 | ||
| R909421368 | SPRING DISK | 1 | ||
| 5 | R909418769 | COMPRESSION SPRING | 1 | |
| R909430538 | PIN | 1 | ||
| R909439408 | SPRING DISK | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| 11 | R909420991 | SETSCREW | 1 | |
| 12 | R909152425 | SEALING NUTD | 1 |
