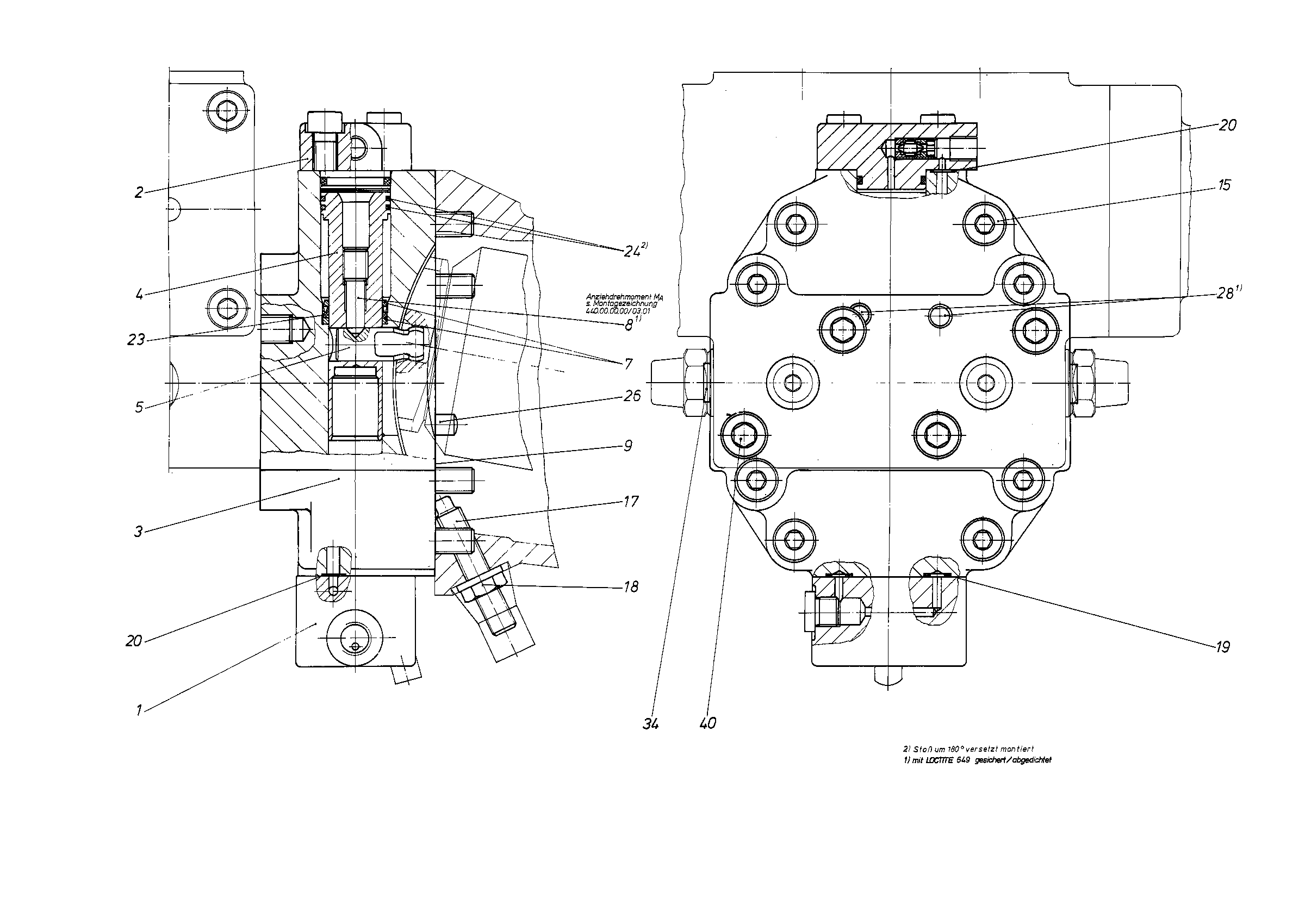

Assembly
CONTROLR909429794
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902000174 | CONTROL PART Assembly parts list →L | 1 | |
| 2 | R909423176 | COVER Assembly parts list →L | 1 | |
| 3 | R909425822 | COVER PLATE | 1 | |
| R909424089 | POSITIONING PISTON | 1 | ||
| 5 | R909422021 | POSITIONING STUD | 1 | |
| R909424090 | BACKUP RING | 2 | ||
| 8 | R909445922 | SETSCREW | 1 | |
| 9 | R902011856 | SEALD | 1 | |
| 15 | R909083131 | SOCKET HEAD CAP SCREW | 8 | |
| 17 | R909446862 | SETSCREW Assembly parts list →L | 1 | |
| R909152459 | SEALING NUTD | 1 | ||
| R909086498 | O-RINGD | 5 | ||
| 23 | R909156542 | ROD SEALD | 1 | |
| 24 | R909156479 | R-RINGD | 2 | |
| 26 | R913009666 | STRAIGHT PIN | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909153860 | SCREW PLUGD | 2 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 4 |
