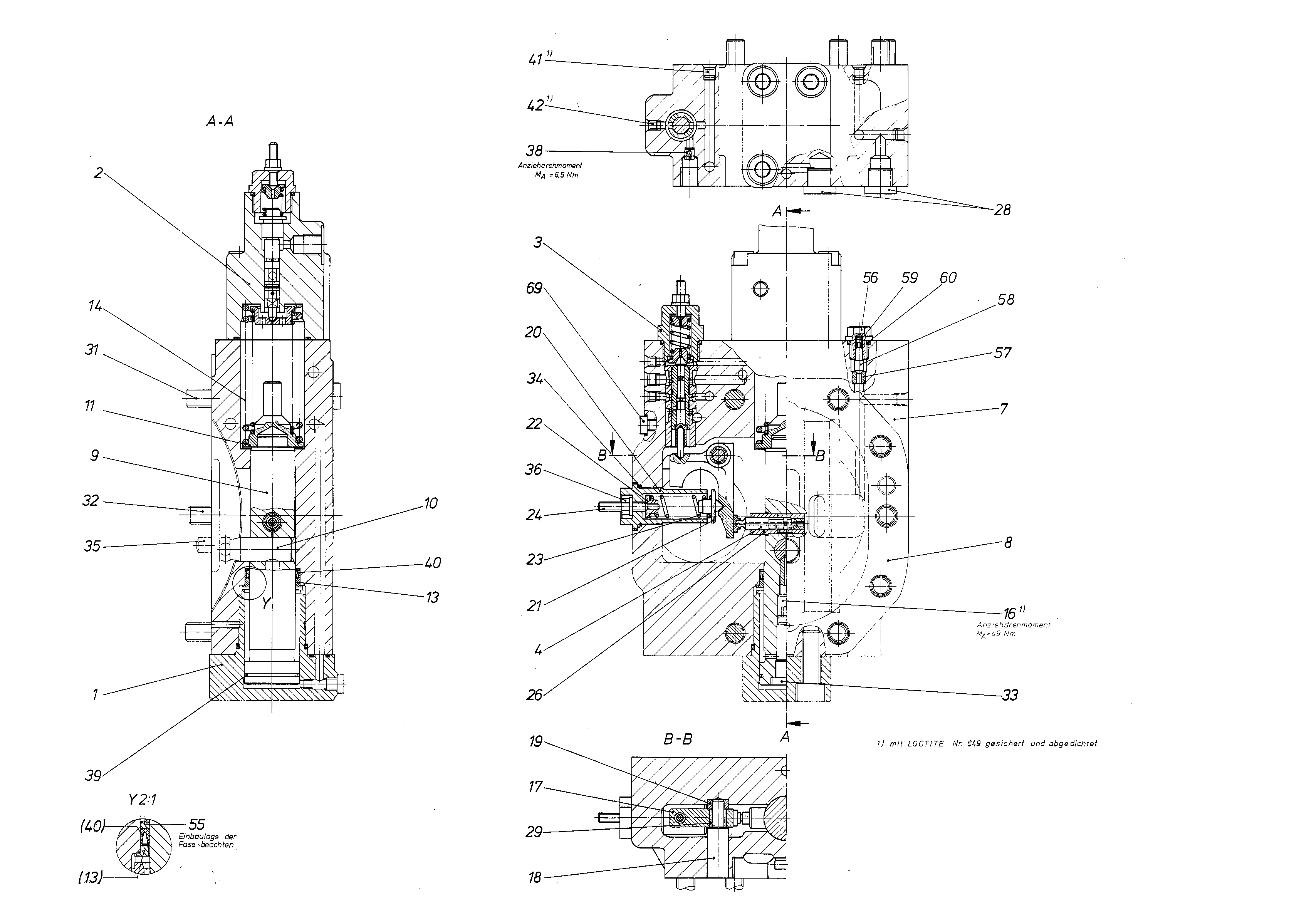

Assembly
CONTROLR909429799
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909413253 | COVER Assembly parts list →L | 1 | |
| 2 | R909428579 | CONTROL UNIT Assembly parts list →L | 1 | |
| R909415511 | CONTROL PART Assembly parts list →L | 1 | ||
| 4 | R909419352 | PISTON PAD | 1 | |
| 5 | R909429408 | ADJUSTING PART Assembly parts list →L | 1 | |
| 7 | R909426444 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| 8 | R902011851 | SEALD | 1 | |
| 9 | R909425502 | POSITIONING PISTON | 1 | |
| R909425503 | POSITIONING STUD | 1 | ||
| 11 | R909431712 | SPRING DISK | 1 | |
| 13 | R909424360 | RING | 1 | |
| R909425746 | COMPRESSION SPRING | 1 | ||
| 16 | R909413697 | SETSCREW | 1 | |
| R909422794 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425555 | ADJUSTING BUSH | 1 | ||
| 28 | R909153816 | SCREW PLUGD | 2 | |
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| 31 | R909083101 | SOCKET HEAD CAP SCREW | 7 | |
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 35 | R913009669 | STRAIGHT PIN | 2 | |
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 6 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 44 | R909151692 | SCREW PLUGD | 1 | |
| R909424361 | BACKUP RING | 1 | ||
| 56 | R902035187 | SCREW PLUG | 1 | |
| R902209845 | BUSHING | 1 | ||
| R909426662 | BOLT | 1 | ||
| 59 | R909060383 | COMPRESSION SPRING | 1 | |
| 60 | R909083749 | O-RINGD | 1 | |
| 69 | R909154024 | SCREW PLUGD | 1 |
