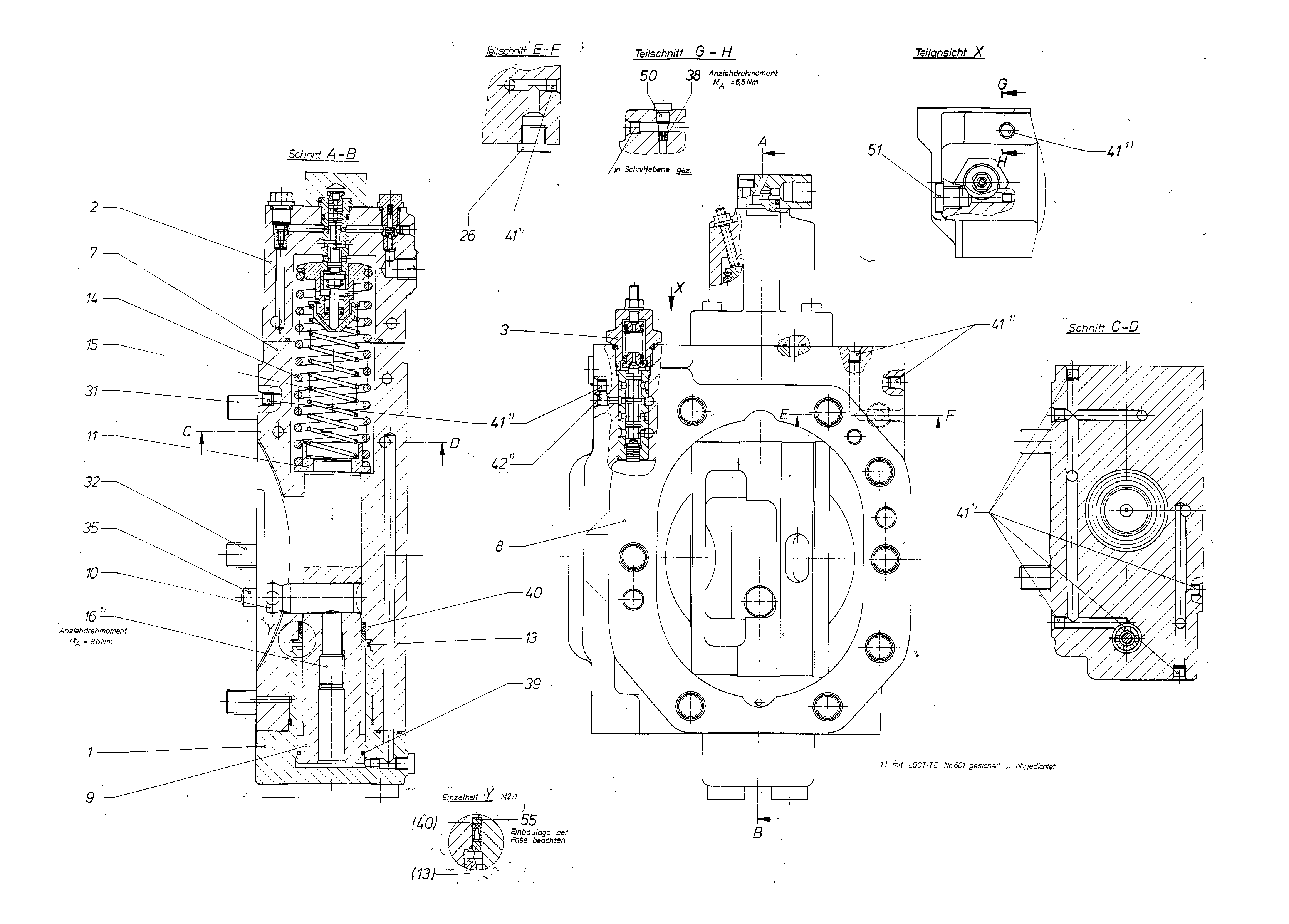

Assembly
CONTROLR909429823
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414915 | COVER Assembly parts list →L | 1 | ||
| R909429824 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909416172 | CONTROL PART Assembly parts list →L | 1 | ||
| R909432070 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024644 | SEALD | 1 | ||
| R909425472 | POSITIONING PISTON | 1 | ||
| R909425458 | POSITIONING STUD | 1 | ||
| R909414864 | SPRING DISK | 1 | ||
| R909424406 | RING | 1 | ||
| R909414907 | COMPRESSION SPRING | 1 | ||
| R909415045 | COMPRESSION SPRING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156706 | R-RINGD | 1 | ||
| R909156707 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909424407 | BACKUP RING | 1 |
