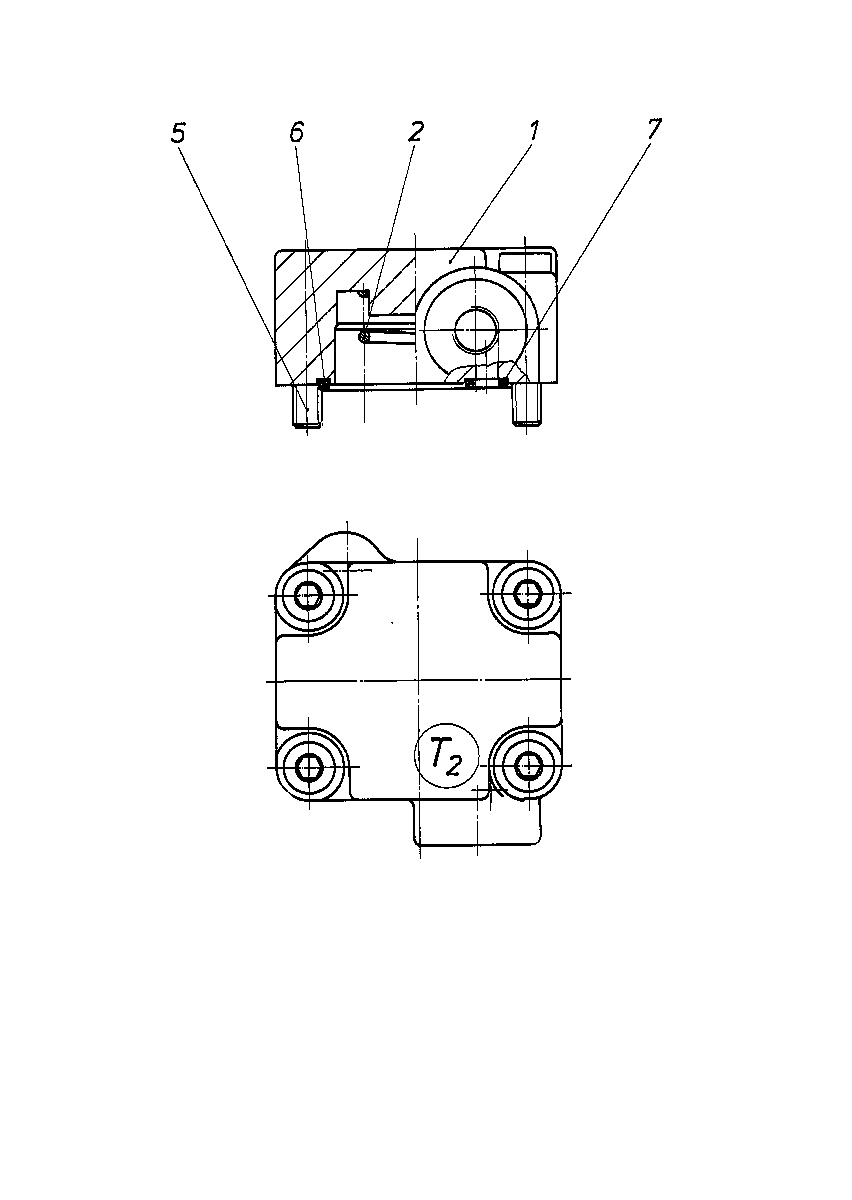

Assembly
COVERR909429915
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432133 | COVER | 1 | |
| R909426540 | COMPRESSION SPRING | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| 6 | R909086378 | O-RINGD | 1 | |
| 7 | R909086332 | O-RINGD | 2 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432133 | COVER | 1 | |
| R909426540 | COMPRESSION SPRING | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| 6 | R909086378 | O-RINGD | 1 | |
| 7 | R909086332 | O-RINGD | 2 |
