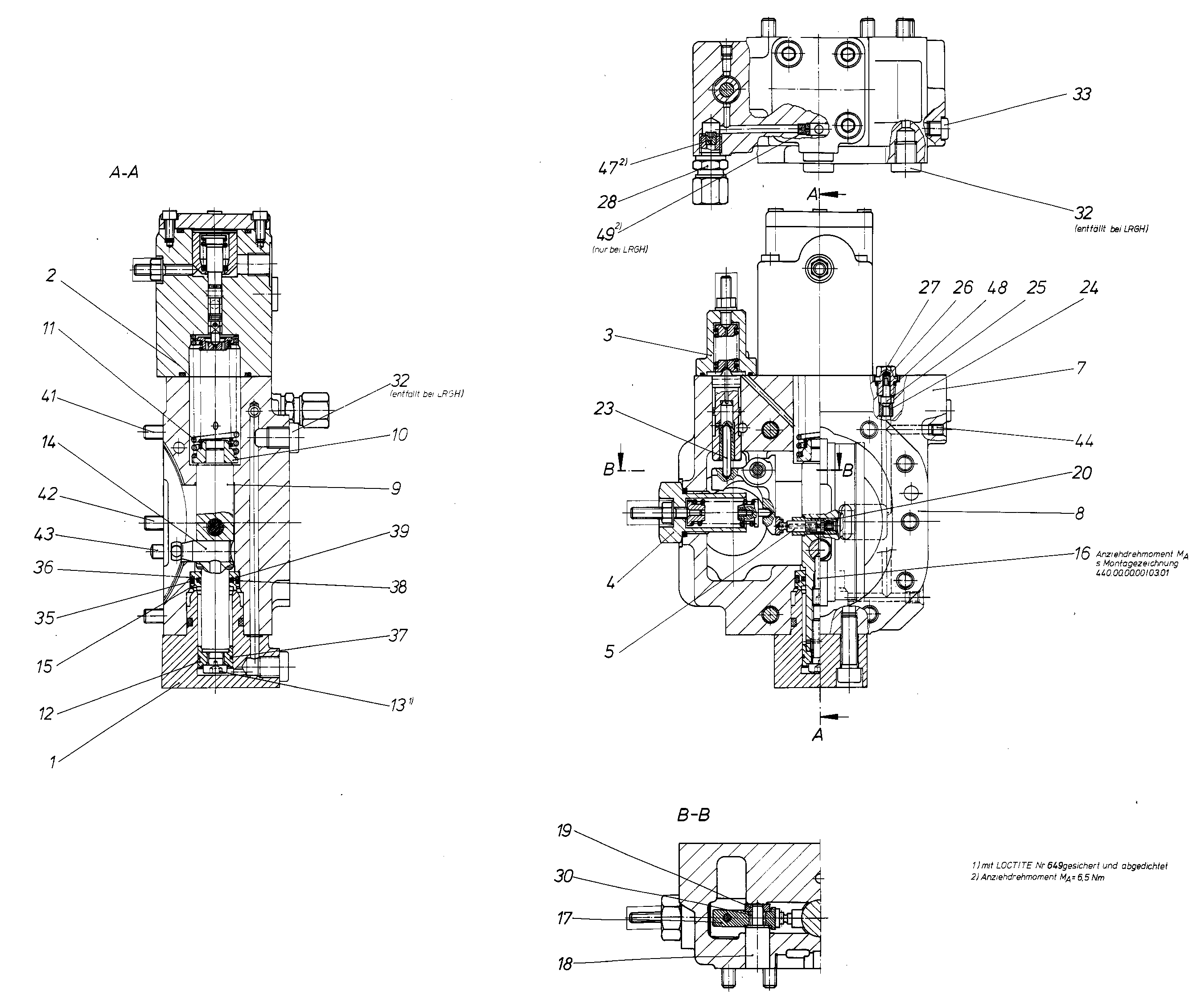

Assembly
CONTROLR909433040
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014052 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909428573 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909441229 | CONTROL PART Assembly parts list →L | 1 | ||
| R909427311 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909419520 | PISTON PAD | 1 | ||
| R909430431 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909430102 | POSITIONING PISTON | 1 | ||
| R909430100 | SPRING DISK | 1 | ||
| R909426527 | COMPRESSION SPRING | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909430464 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R902054362 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| R909418300 | BUSHING | 1 | ||
| R909425552 | ADJUSTING BUSH | 1 | ||
| R909439610 | PIN | 1 | ||
| R909415815 | BUSHING | 1 | ||
| R909415579 | VALVE CONE | 1 | ||
| R909060519 | COMPRESSION SPRING | 1 | ||
| R909415580 | SCREW PLUG | 1 | ||
| R909403866 | THREADED FASTENER | 1 | ||
| R909830951 | NEEDLE BUSH | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909156492 | NOZZLE | 1 | ||
| R909086498 | O-RINGD | 1 |
