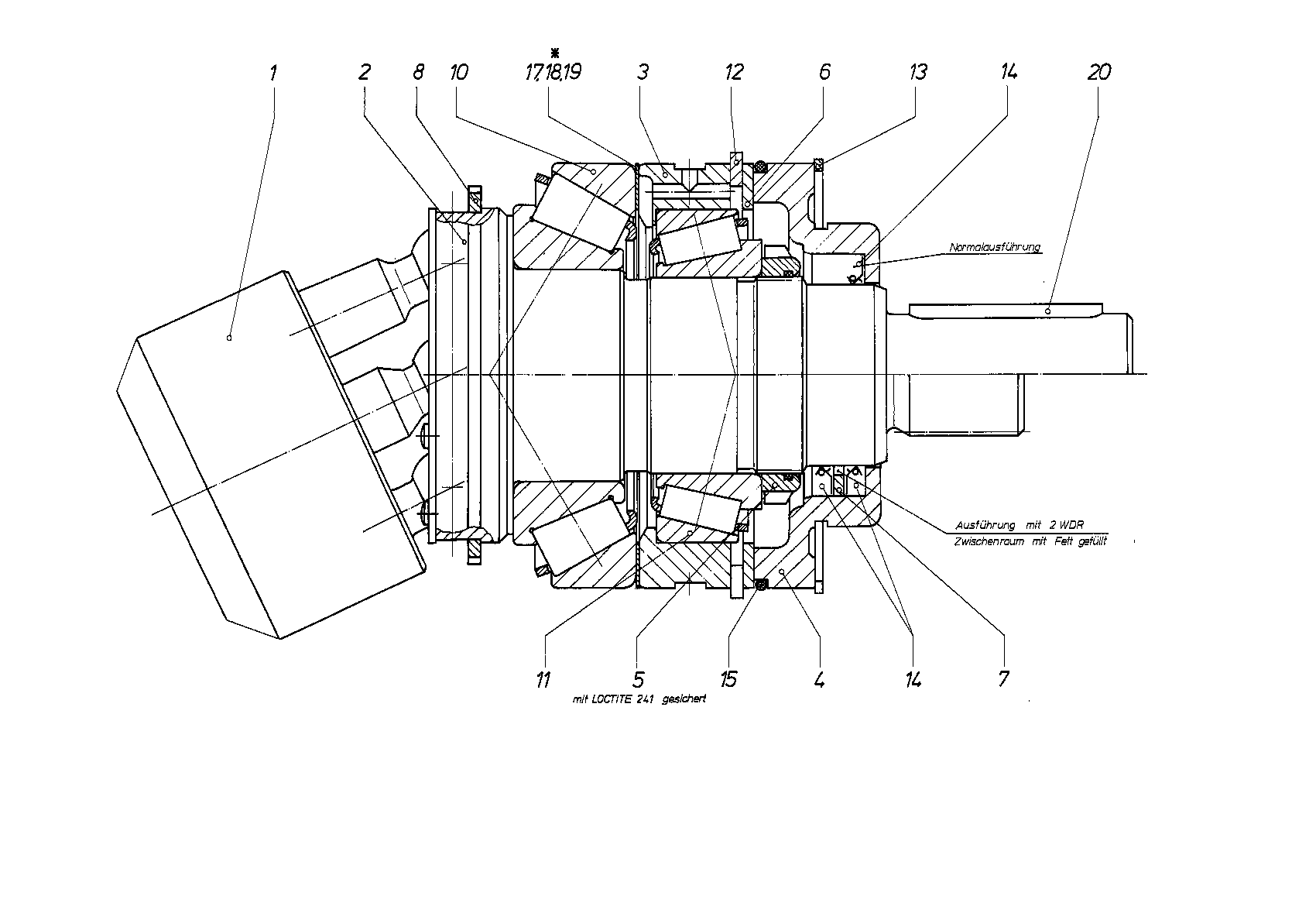

Assembly
ROTARY GROUPR909433069
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429232 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909432235 | DRIVE SHAFT | 1 | ||
| R909410429 | BEARING RING | 1 | ||
| R909410498 | LOCKING RINGD | 1 | ||
| 5 | R913037933 | SLOTTED ROUND NUT | 1 | |
| R909156292 | SUPPORTING DISC | 1 | ||
| 8 | R909436875 | ANNULAR GEAR | 1 | |
| 10 | R909154344 | TAPERED-ROLLER BEARING | 1 | |
| 11 | R909152775 | TAPERED-ROLLER BEARING | 1 | |
| R909083421 | RETAINING RING | 1 | ||
| R909154380 | SNAP RING | 1 | ||
| 14 | R909831662 | ROTARY SHAFT LIP SEALD | 1 | |
| 15 | R909085366 | O-RINGD | 1 | |
| 17 | R909154260 | SHIM RING | 2 | |
| 18 | R909087601 | SHIM RING | 1 | |
| 19 | R909154259 | SHIM RING | 1 |
