Assembly

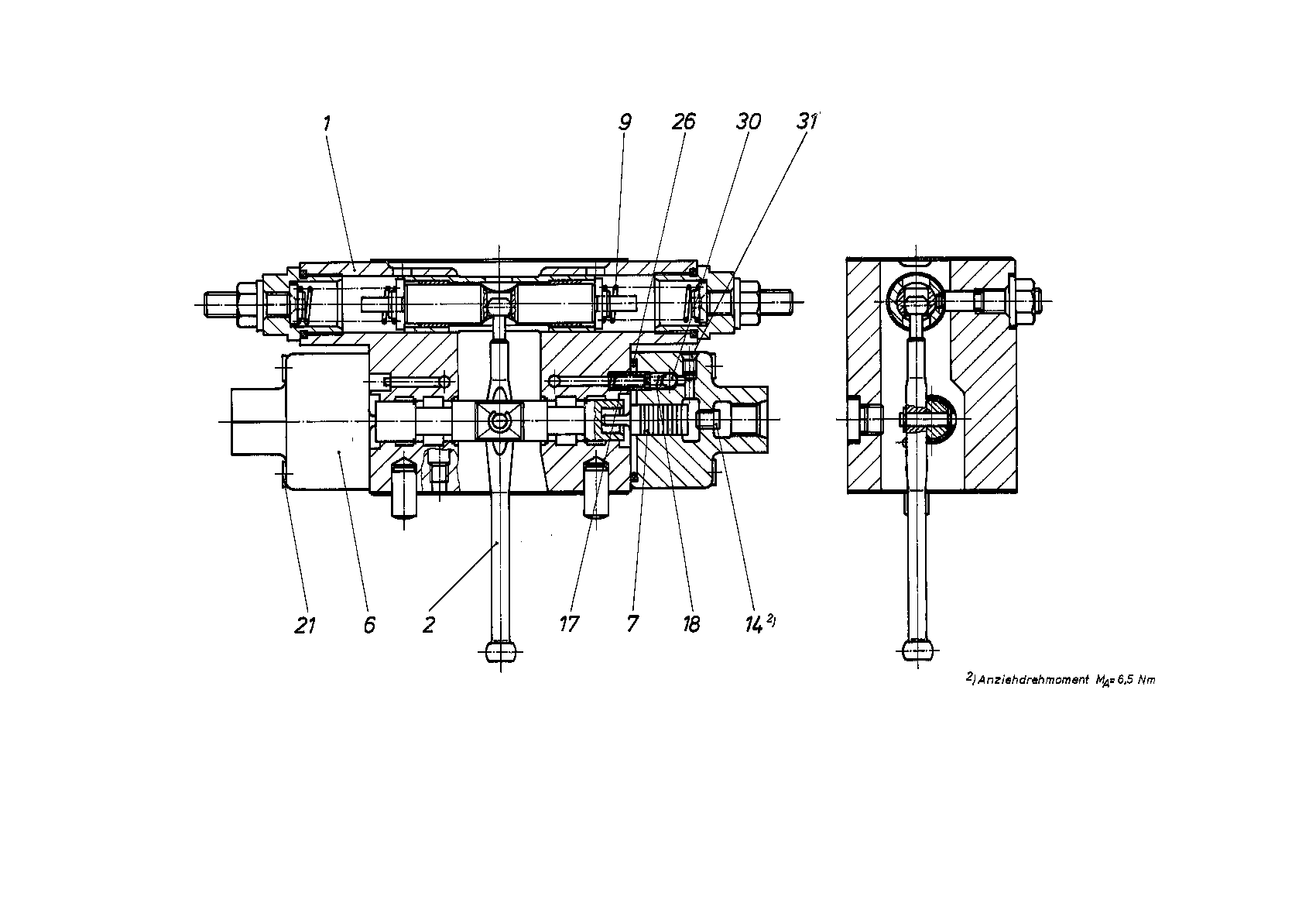

CONTROL MODULER909433103
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909433102 | CONTROL MODULE Assembly parts list →L | 1 | |
| R909424825 | FEEDBACK LEVER | 1 | ||
| R909432274 | HOUSING | 2 | ||
| 7 | R909424802 | PISTON | 2 | |
| 9 | R909425000 | COMPRESSION SPRING | 2 | |
| 14 | R909156492 | NOZZLE | 2 | |
| R909414977 | BUSHING | 2 | ||
| 18 | R909414983 | COMPRESSION SPRING | 2 | |
| R909083014 | SOCKET HEAD CAP SCREW | 8 | ||
| 26 | R909083769 | O-RINGD | 2 | |
| 30 | R909083258 | BALL | 2 | |
| 31 | R909831317 | DOUBLE BREAK-OFF PLUG | 2 |
