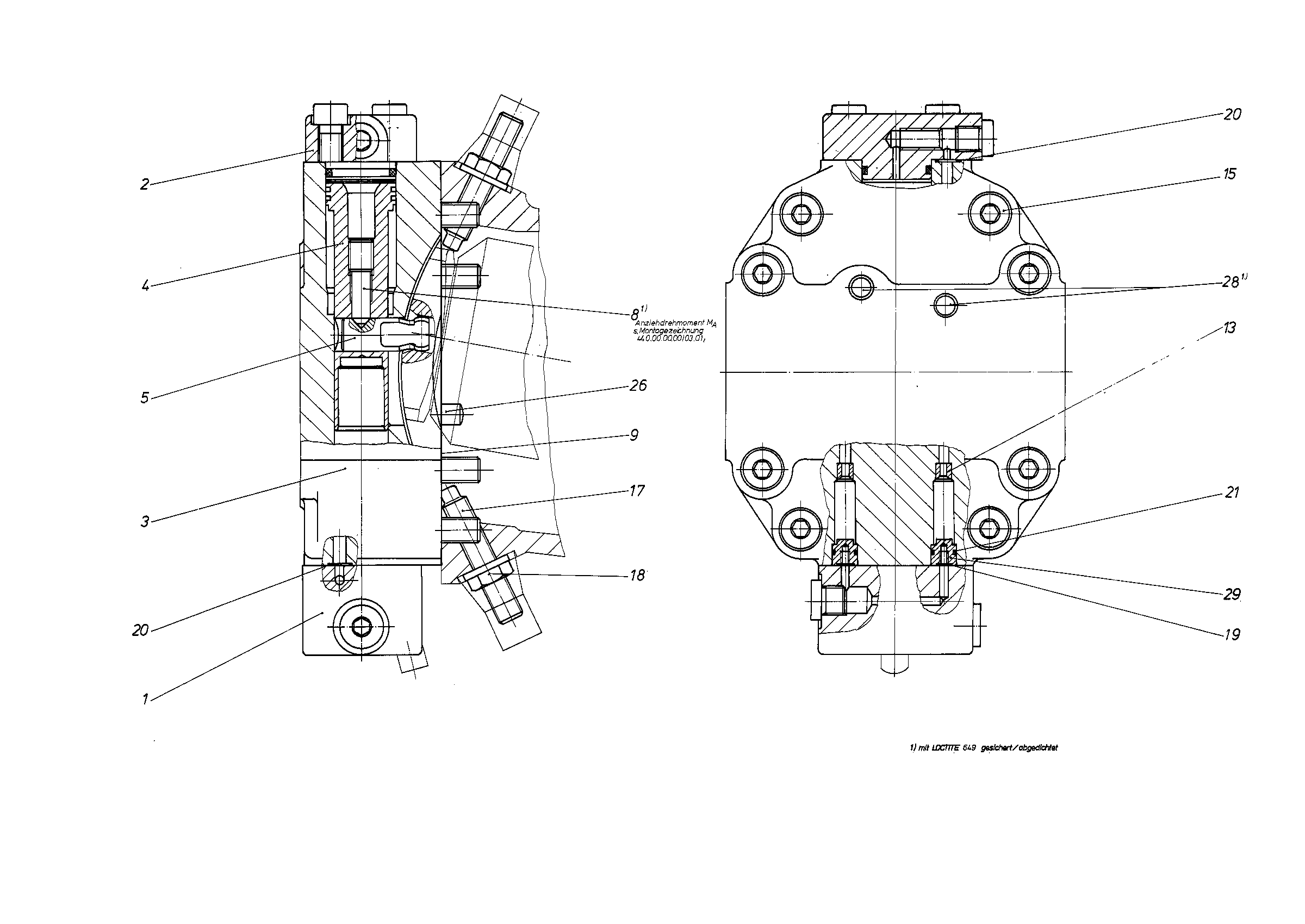

Assembly
CONTROLR909433162
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909433163 | CONTROL PART Assembly parts list →L | 1 | |
| 2 | R909423153 | COVER Assembly parts list →L | 1 | |
| 3 | R909422907 | COVER PLATE | 1 | |
| R909422908 | POSITIONING PISTON | 1 | ||
| 5 | R909422909 | POSITIONING STUD | 1 | |
| 8 | R909445056 | SETSCREW | 1 | |
| 9 | R902011854 | SEALD | 1 | |
| R909083044 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446875 | SETSCREW Assembly parts list →L | 2 | ||
| R909152707 | SEALING NUTD | 2 | ||
| R909083723 | O-RINGD | 2 | ||
| 20 | R909086380 | O-RINGD | 3 | |
| 21 | R909086380 | O-RINGD | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R909418140 | PLUG | 2 |
