Assembly

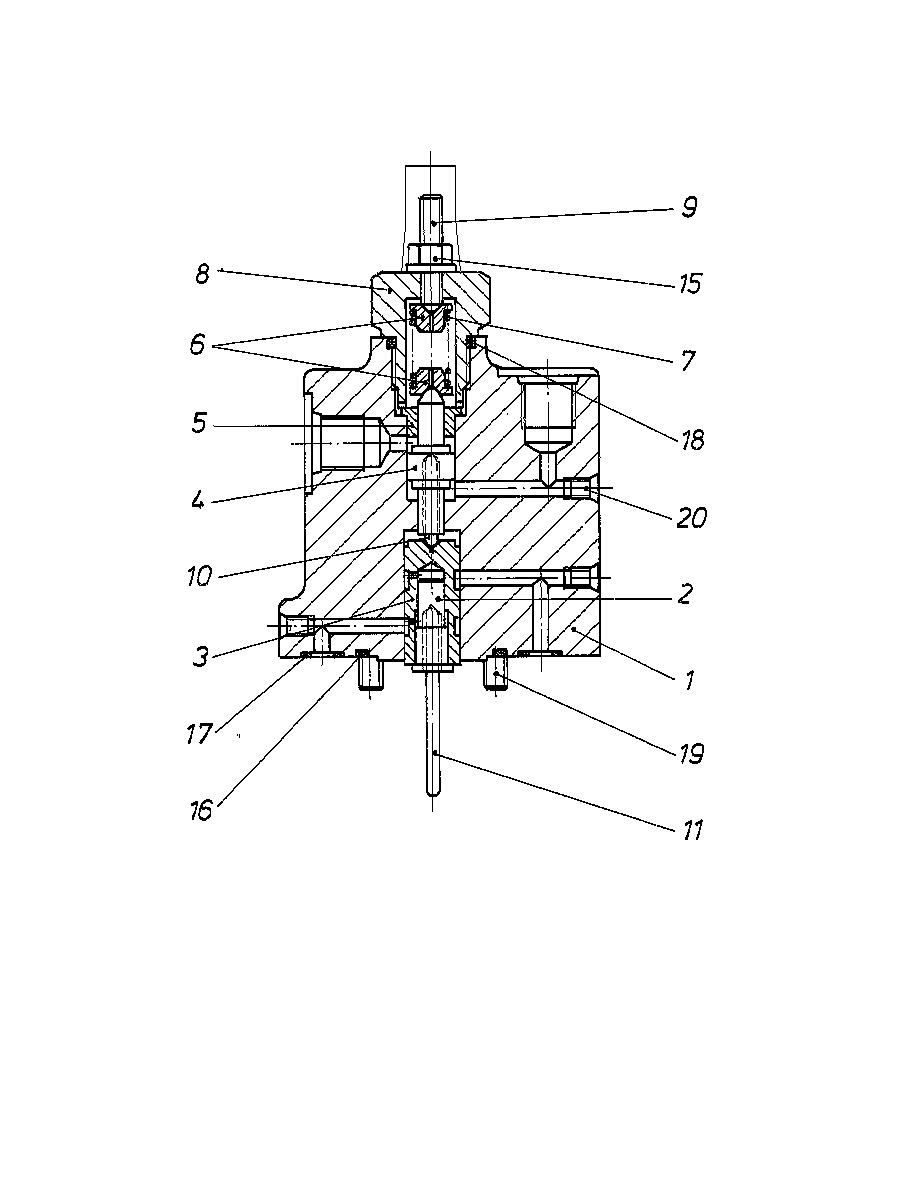

CONTROL MODULER909433185
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432347 | CONTROL HOUSING | 1 | |
| 2 | R909430661 | CONTROL PISTON | 1 | |
| 3 | R909430557 | CONTROL SLEEVE | 1 | |
| 4 | R909432342 | POSITIONING PISTON | 1 | |
| 5 | R909432241 | GUIDE BUSHING | 1 | |
| R909430649 | SPRING DISK | 2 | ||
| R909430587 | COMPRESSION SPRING | 1 | ||
| 8 | R909430648 | SCREW PLUG | 1 | |
| 9 | R909420991 | SETSCREW | 1 | |
| 10 | R909431195 | PIN | 1 | |
| 11 | R909432348 | PIN | 1 | |
| 15 | R909152425 | SEALING NUTD | 1 | |
| 16 | R909086730 | O-RINGD | 1 | |
| R909086498 | O-RINGD | 2 | ||
| 18 | R909083757 | O-RINGD | 1 | |
| R909085700 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 |
