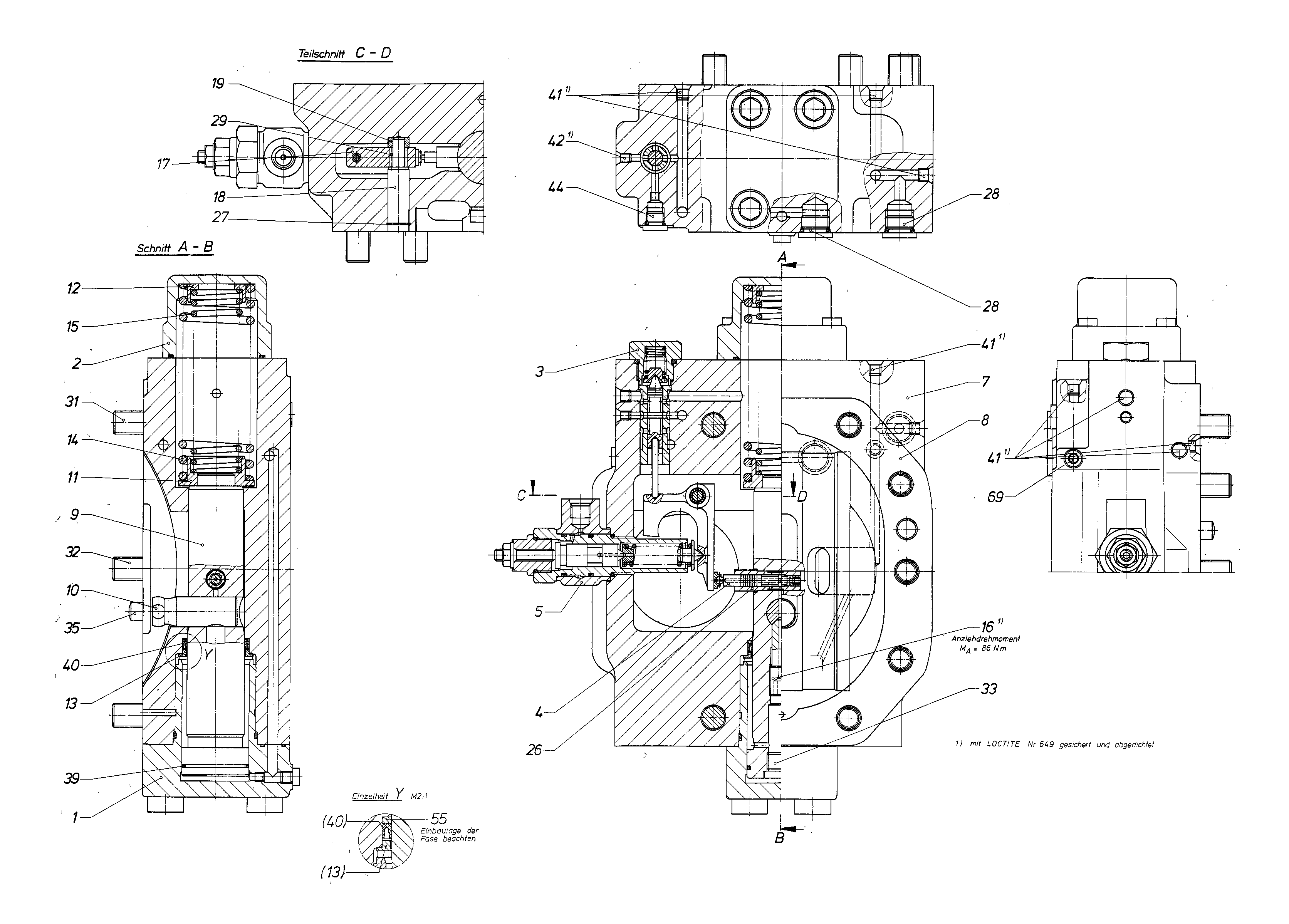

Assembly
CONTROLR909433193
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414915 | COVER Assembly parts list →L | 1 | ||
| R909414916 | COVER Assembly parts list →L | 1 | ||
| R909414944 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419353 | PISTON PAD | 1 | ||
| R909433152 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909422356 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024644 | SEALD | 1 | ||
| R909425484 | POSITIONING PISTON | 1 | ||
| R909425485 | POSITIONING STUD | 1 | ||
| R909414864 | SPRING DISK | 1 | ||
| R909414865 | SPRING DISK | 1 | ||
| R909424406 | RING | 1 | ||
| R909414907 | COMPRESSION SPRING | 1 | ||
| R909414908 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909422062 | LEVER | 1 | ||
| R909414913 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425556 | ADJUSTING BUSH | 1 | ||
| R909083380 | RETAINING RING | 1 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| 36 | R909152425 | SEALING NUTD | 1 | |
| R909156706 | R-RINGD | 1 | ||
| R909156707 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153368 | SCREW PLUGD | 1 | ||
| R909424407 | BACKUP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
