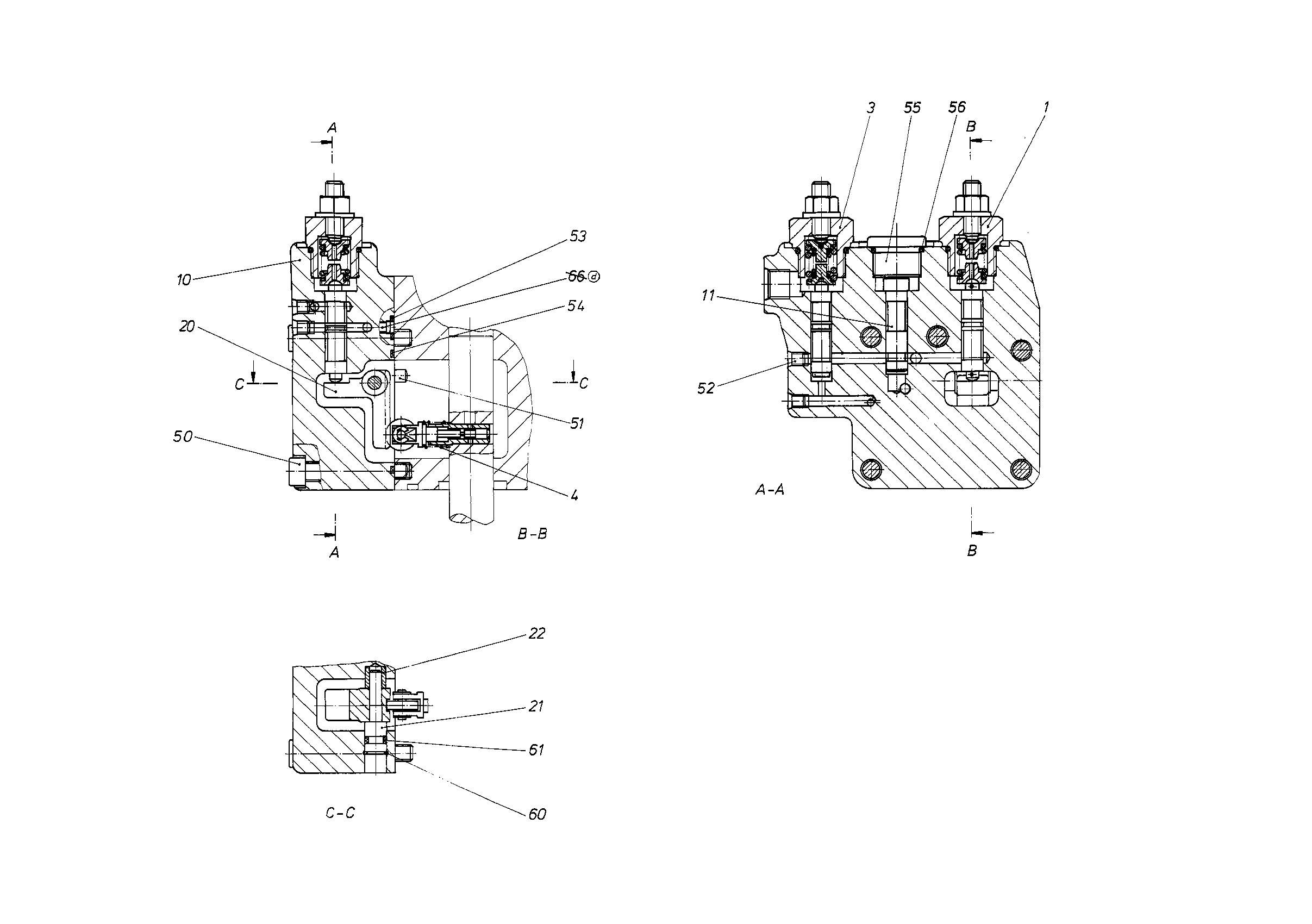

Assembly
REGULATORR909433247
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429025 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 3 | R909437612 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 4 | R909436736 | MEASURING PISTON Assembly parts list →L | 1 | |
| 10 | R909439137 | CONTROL HOUSING | 1 | |
| 11 | R909431326 | LOCKING BOLT | 1 | |
| 20 | R909431926 | ANGLE LEVER | 1 | |
| 21 | R909431281 | BEARING BOLT | 1 | |
| 22 | R909431286 | BUSHING | 1 | |
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909157512 | O-RINGD | 3 | ||
| 54 | R902600656 | O-RINGD | 1 | |
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| 61 | R909086380 | O-RINGD | 1 |
