Assembly

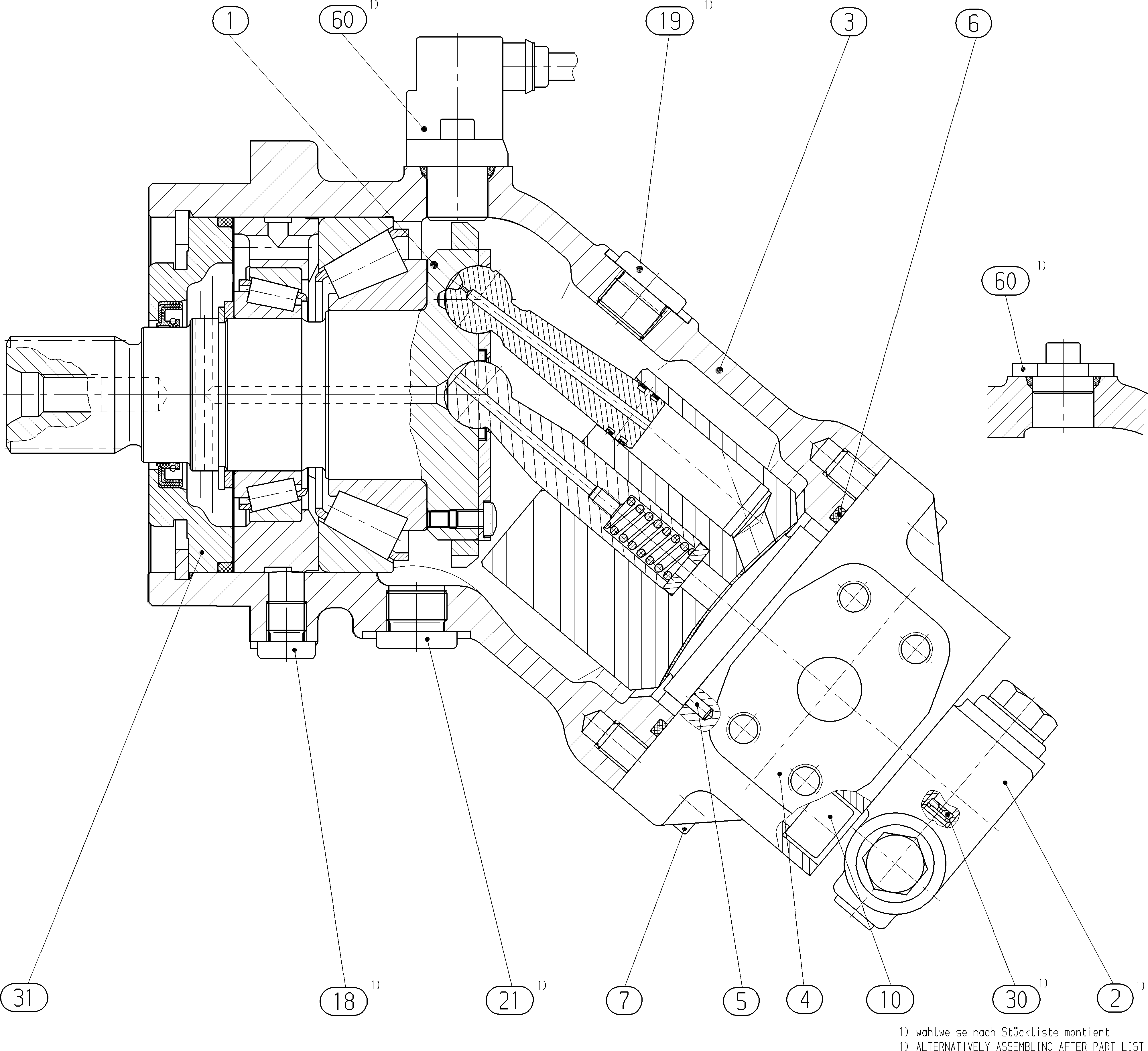

AXIAL-PISTON PUMPR909433364
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902030752 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042314 | HOUSING | 1 | ||
| R909419737 | CONNECTION PLATE | 1 | ||
| R909084150 | STRAIGHT PIN | 1 | ||
| R909086324 | O-RINGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R902149069 | LOCKING RING Assembly parts list →L | 1 |
