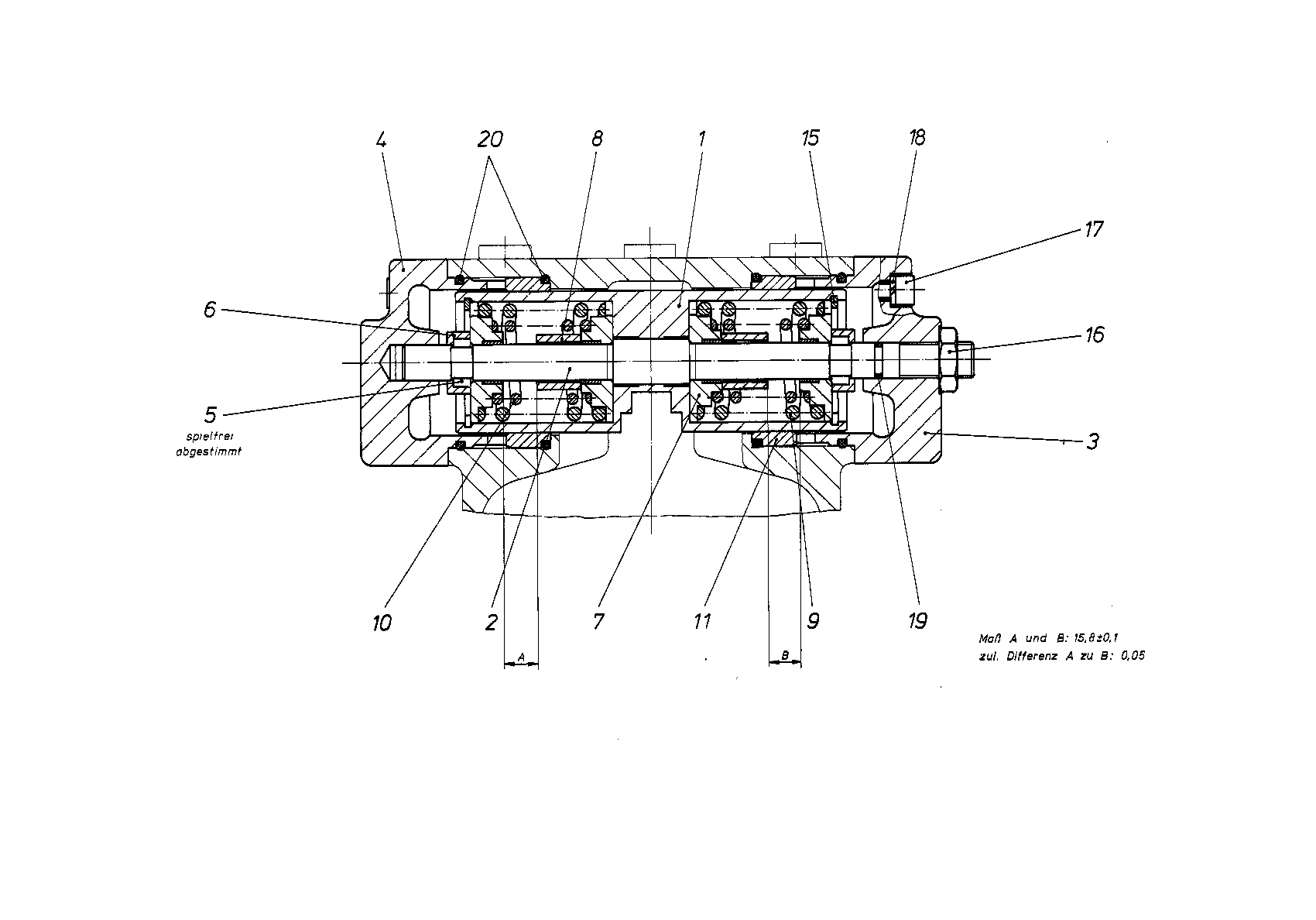

Assembly
CONTROLR909433502
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902002916 | POSITIONING PISTON | 1 | ||
| 2 | R909440438 | ROD | 1 | |
| 3 | R909417197 | COVER | 1 | |
| R909417198 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| 6 | R909400470 | SLEEVE | 2 | |
| R909428369 | SPRING DISK | 4 | ||
| R909400472 | SPACER BUSHING | 2 | ||
| R909400473 | SPACER BUSHING | 1 | ||
| R909400474 | SPACER BUSHING | 1 | ||
| R909424100 | COMPRESSION SPRING | 2 | ||
| R909424101 | COMPRESSION SPRING | 2 | ||
| 11 | R909417202 | BUSHING | 2 | |
| 15 | R909156216 | V-RING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 8 | ||
| 18 | R909083250 | SPRING LOCK WASHER | 8 | |
| R909085709 | O-RINGD | 1 | ||
| R909084462 | O-RINGD | 4 |
