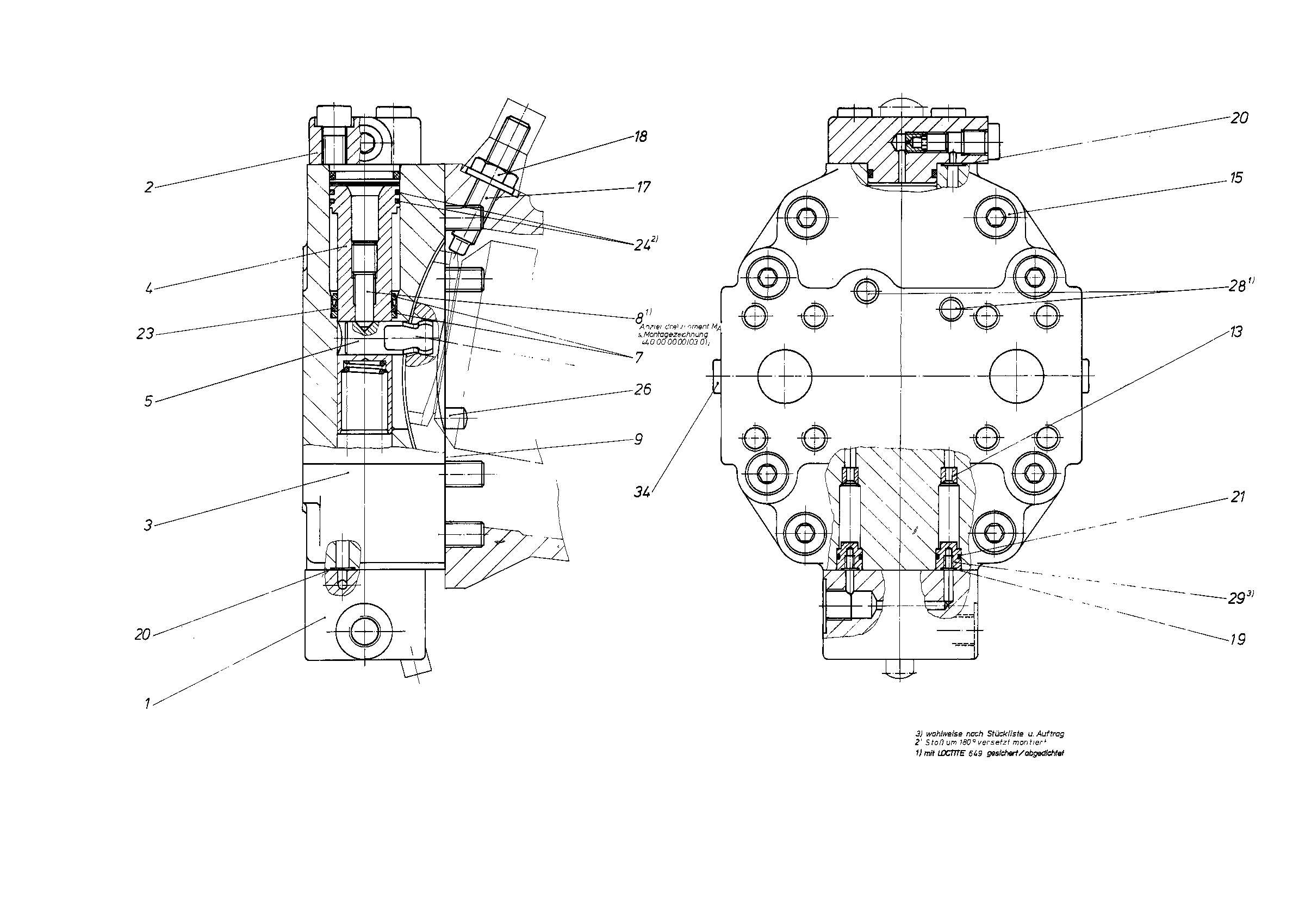

Assembly
CONTROLR909433506
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420225 | CONTROL PART Assembly parts list →L | 1 | ||
| 2 | R909433507 | COVER Assembly parts list →L | 1 | |
| 3 | R909422882 | COVER PLATE | 1 | |
| R909422216 | POSITIONING PISTON | 1 | ||
| R909422217 | POSITIONING STUD | 1 | ||
| R909422905 | BACKUP RING | 2 | ||
| 8 | R909445016 | SETSCREW | 1 | |
| R902011853 | SEALD | 1 | ||
| 15 | R909083090 | SOCKET HEAD CAP SCREW | 8 | |
| R909446862 | SETSCREW Assembly parts list →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| 19 | R909084469 | O-RINGD | 2 | |
| 20 | R909086498 | O-RINGD | 3 | |
| 21 | R909085709 | O-RINGD | 2 | |
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | R909156544 | ROD SEALD | 1 | |
| 24 | R909156647 | R-RINGD | 2 | |
| R913009669 | STRAIGHT PIN | 2 | ||
| 28 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R902075345 | PLUG | 2 | |
| R909153815 | SCREW PLUGD | 2 |
