Assembly

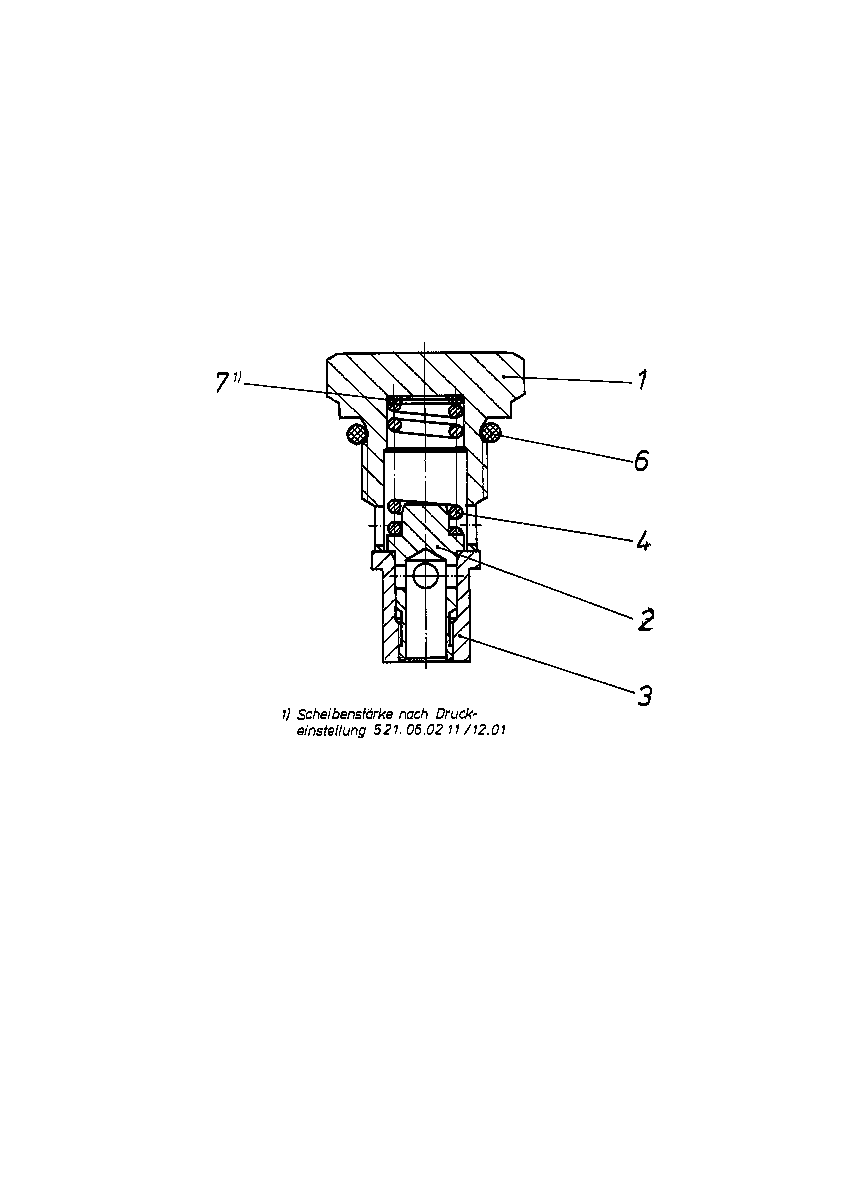

PRESSURE RELIEF VALVER909433666
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432817 | SCREW PLUG | 1 | |
| 2 | R909432815 | VALVE SPOOL | 1 | |
| 3 | R909432816 | BUSHING | 1 | |
| 4 | R909432358 | COMPRESSION SPRING | 1 | |
| 6 | R909083753 | O-RINGD | 1 | |
| 7 | R909157953 | SHIM RING | 1 | |
| 7 | R909157954 | SHIM RING | 1 | |
| 7 | R909157955 | SHIM RING | 1 |
