Assembly

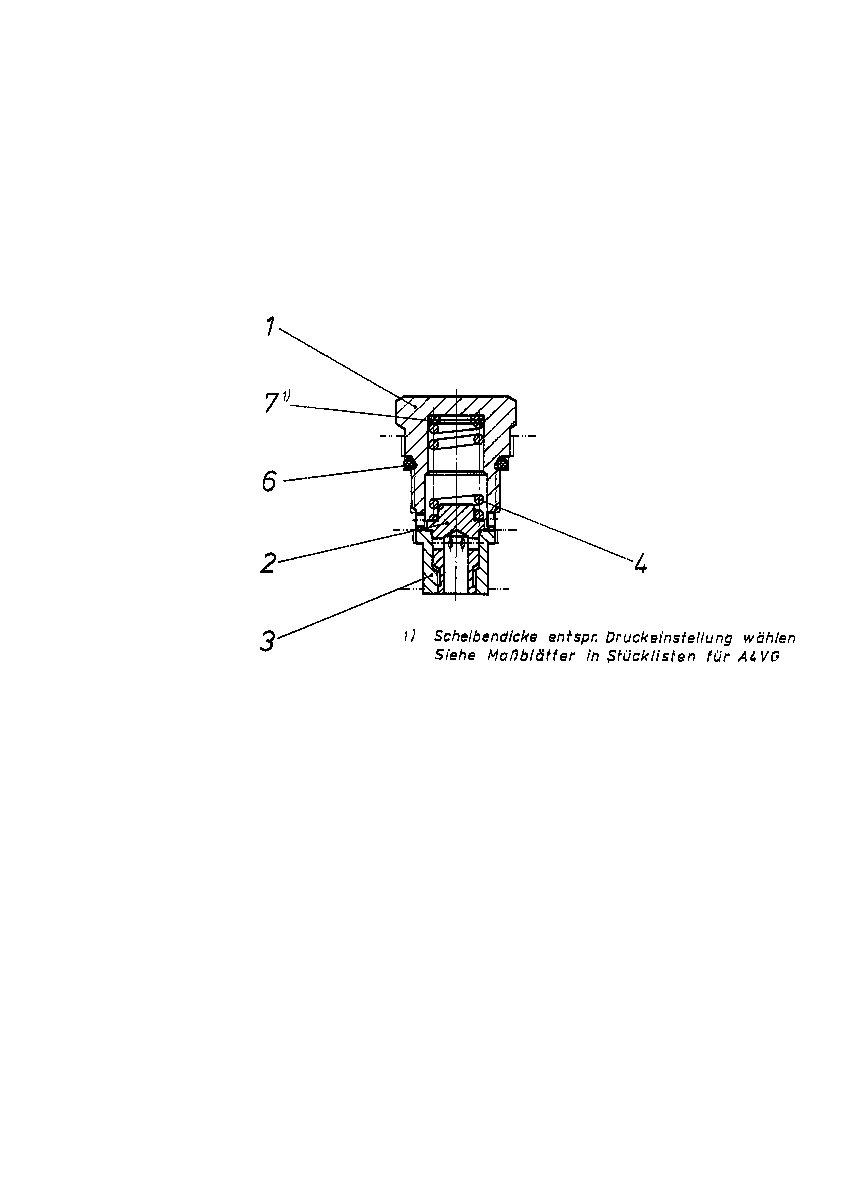

PRESSURE RELIEF VALVER909433667
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432818 | SCREW PLUG | 1 | |
| 2 | R909432819 | VALVE SPOOL | 1 | |
| 3 | R909432820 | BUSHING | 1 | |
| 4 | R909424461 | COMPRESSION SPRING | 1 | |
| 6 | R909083758 | O-RINGD | 1 | |
| 7 | R909153799 | SHIM RING | 1 | |
| 7 | R909157078 | SHIM RING | 1 | |
| 7 | R909157866 | SHIM RING | 1 |
