Assembly

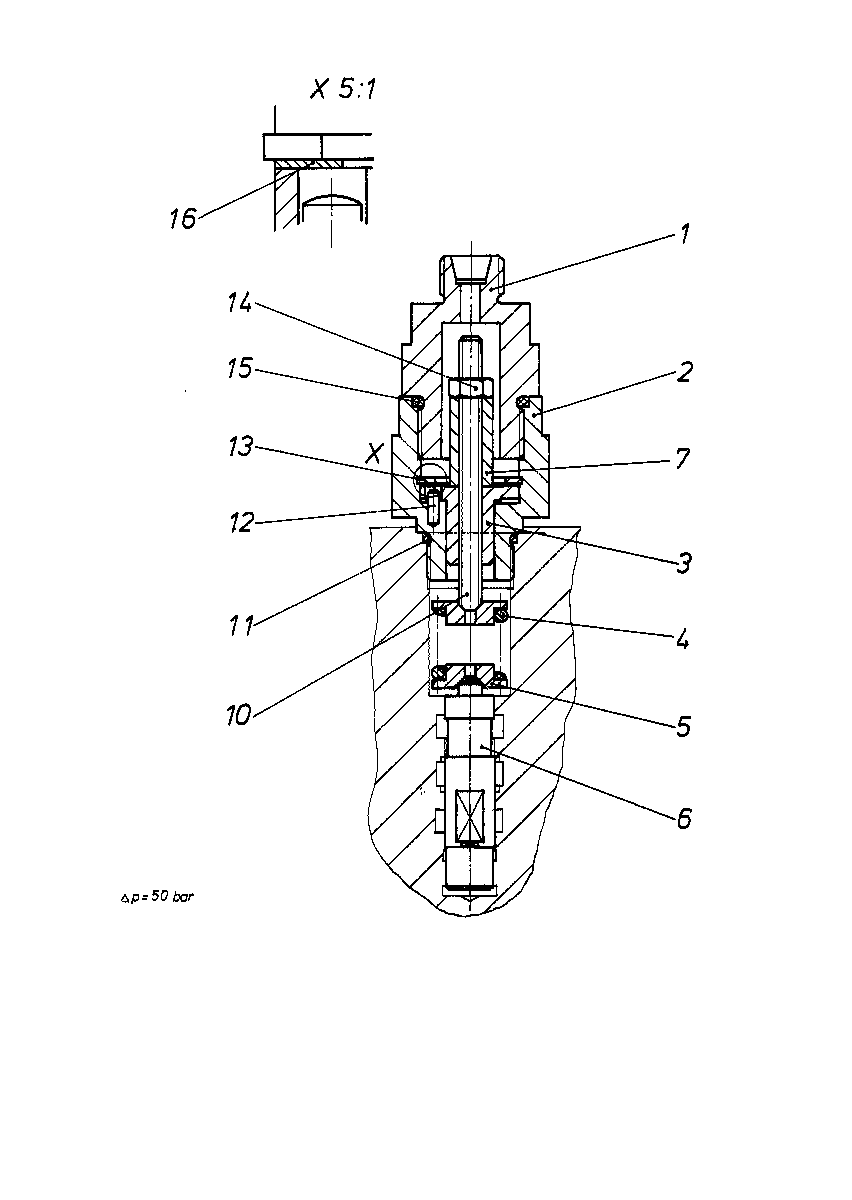

PRESSURE REGULATORR909433775
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432914 | CONNECTING PIECE | 1 | ||
| 2 | R909425627 | THREADED FASTENER | 1 | |
| 3 | R909430297 | POSITIONING PISTON | 1 | |
| R909431610 | COMPRESSION SPRING | 1 | ||
| 5 | R909408853 | SPRING DISK | 2 | |
| 6 | R909432386 | CONTROL PISTON | 1 | |
| 7 | R909432915 | SPACER BUSHING | 1 | |
| R909830177 | SETSCREW | 1 | ||
| 11 | R909083758 | O-RINGD | 1 | |
| 12 | R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | |
| R909083387 | RETAINING RING | 1 | ||
| R909083611 | HEXAGON NUT | 1 | ||
| R909086510 | O-RINGD | 1 | ||
| R909156050 | SHIM RING | 1 |
