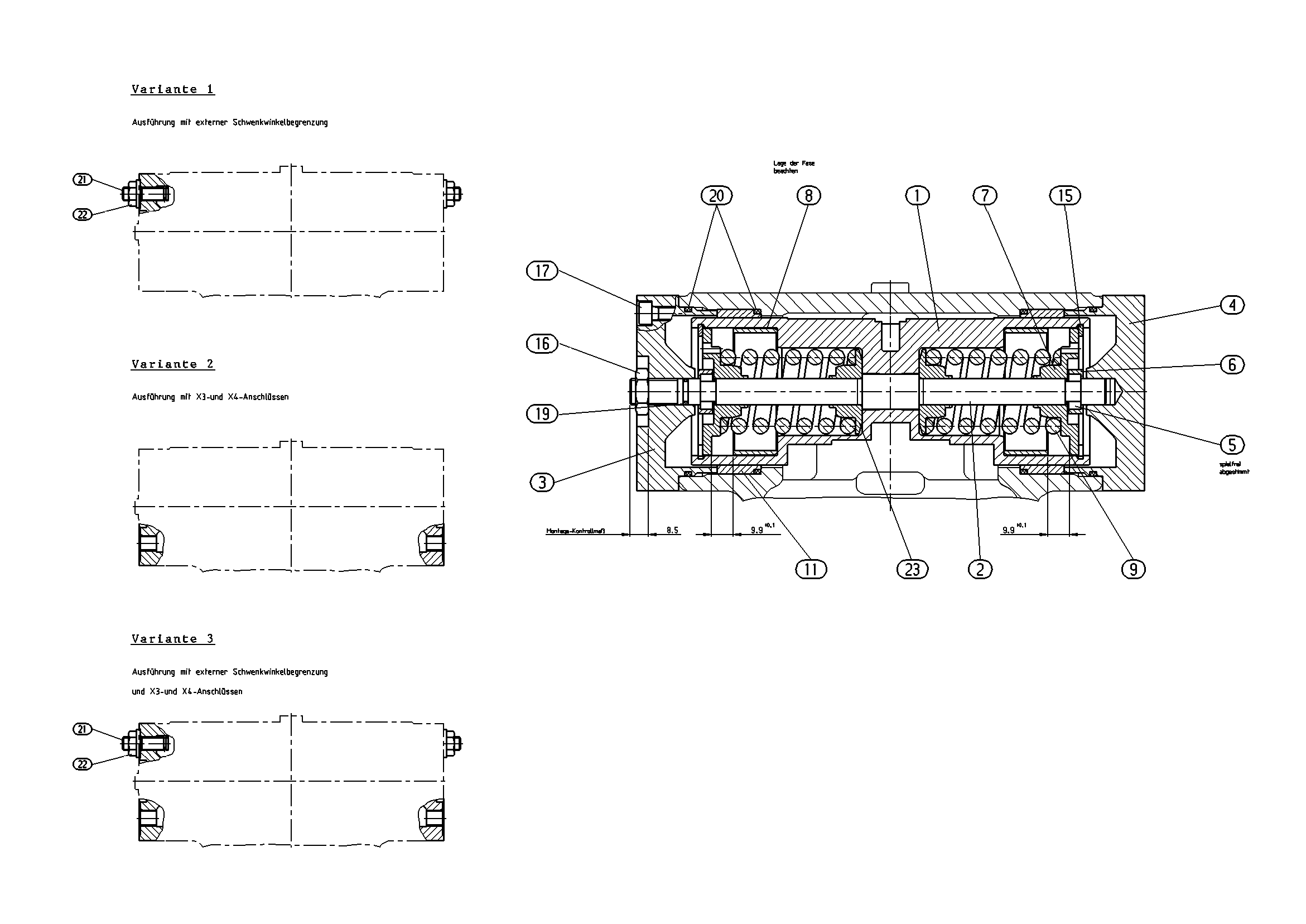

Assembly
CONTROLR909433801
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909652161 | POSITIONING PISTON | 1 | ||
| R902278029 | ROD | 1 | ||
| R909921709 | COVER | 1 | ||
| R909921710 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| R909443580 | LOCATING RING | 2 | ||
| R902020101 | SPRING DISK | 2 | ||
| R909432887 | SPACER RING | 2 | ||
| R909432888 | SPACER RING | 1 | ||
| R909432889 | SPACER RING | 1 | ||
| R909432979 | COMPRESSION SPRING | 2 | ||
| R909430306 | BUSHING | 2 | ||
| R909084557 | RETAINING RING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909084744 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085709 | O-RINGD | 1 | ||
| R909084482 | O-RINGD | 4 | ||
| R909430349 | SETSCREW | 2 | ||
| R909153271 | SEALING NUTD | 2 | ||
| R909449248 | SPRING DISK | 2 |
