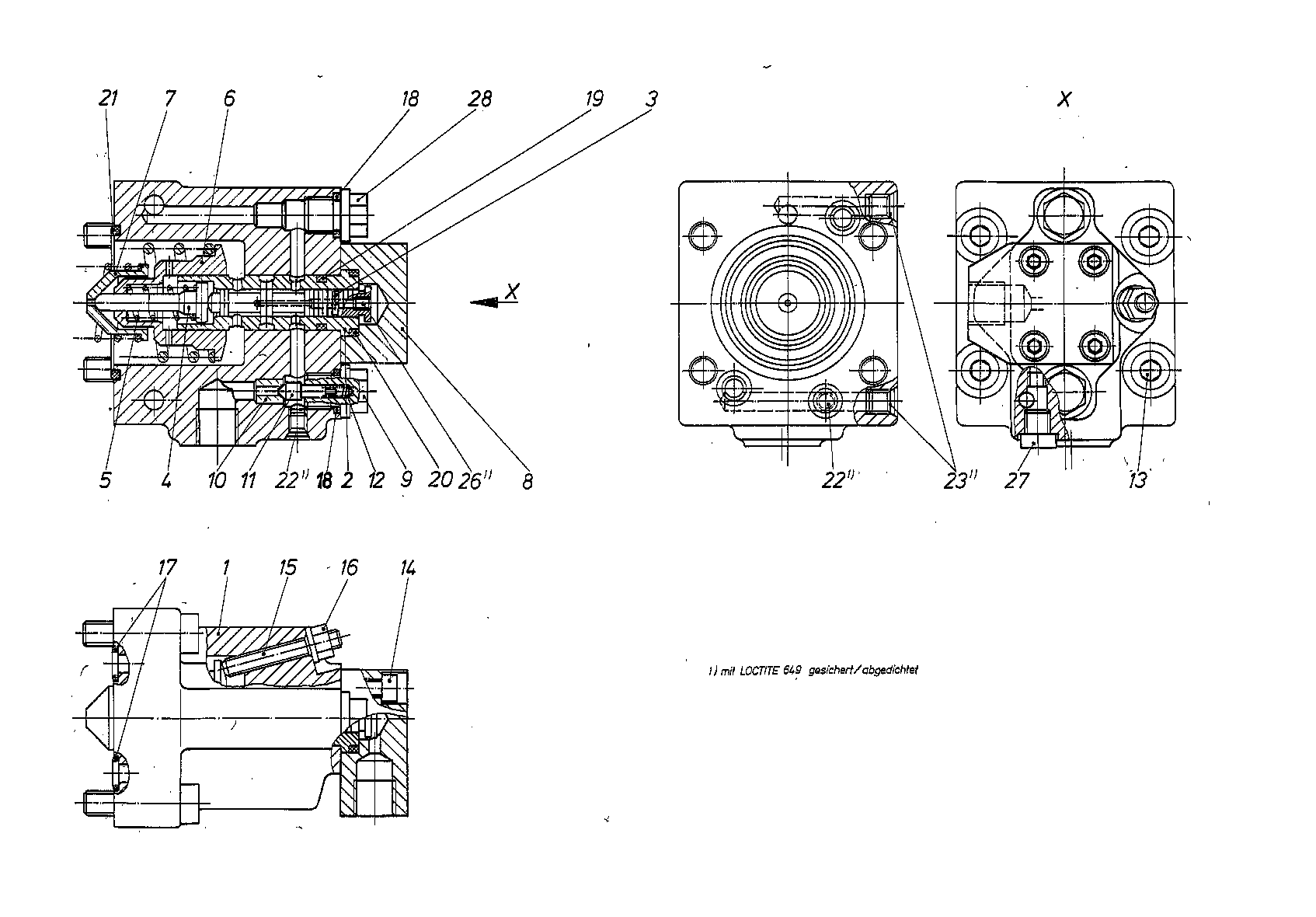

Assembly
CONTROL MODULER909433886
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909424534 | HOUSING | 1 | ||
| R909414074 | CONTROL SLEEVE | 1 | ||
| R909414236 | CONTROL PISTON | 1 | ||
| R909414235 | SPRING BOLT | 1 | ||
| R909431617 | COMPRESSION SPRING | 1 | ||
| R909418583 | SPRING BUSH | 1 | ||
| R909418584 | SPRING DISK | 1 | ||
| R909432652 | COVER | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909426662 | BOLT | 1 | ||
| R909060383 | COMPRESSION SPRING | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154057 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086333 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909083753 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909153320 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909083236 | SCREW PLUG | 1 |
