Assembly

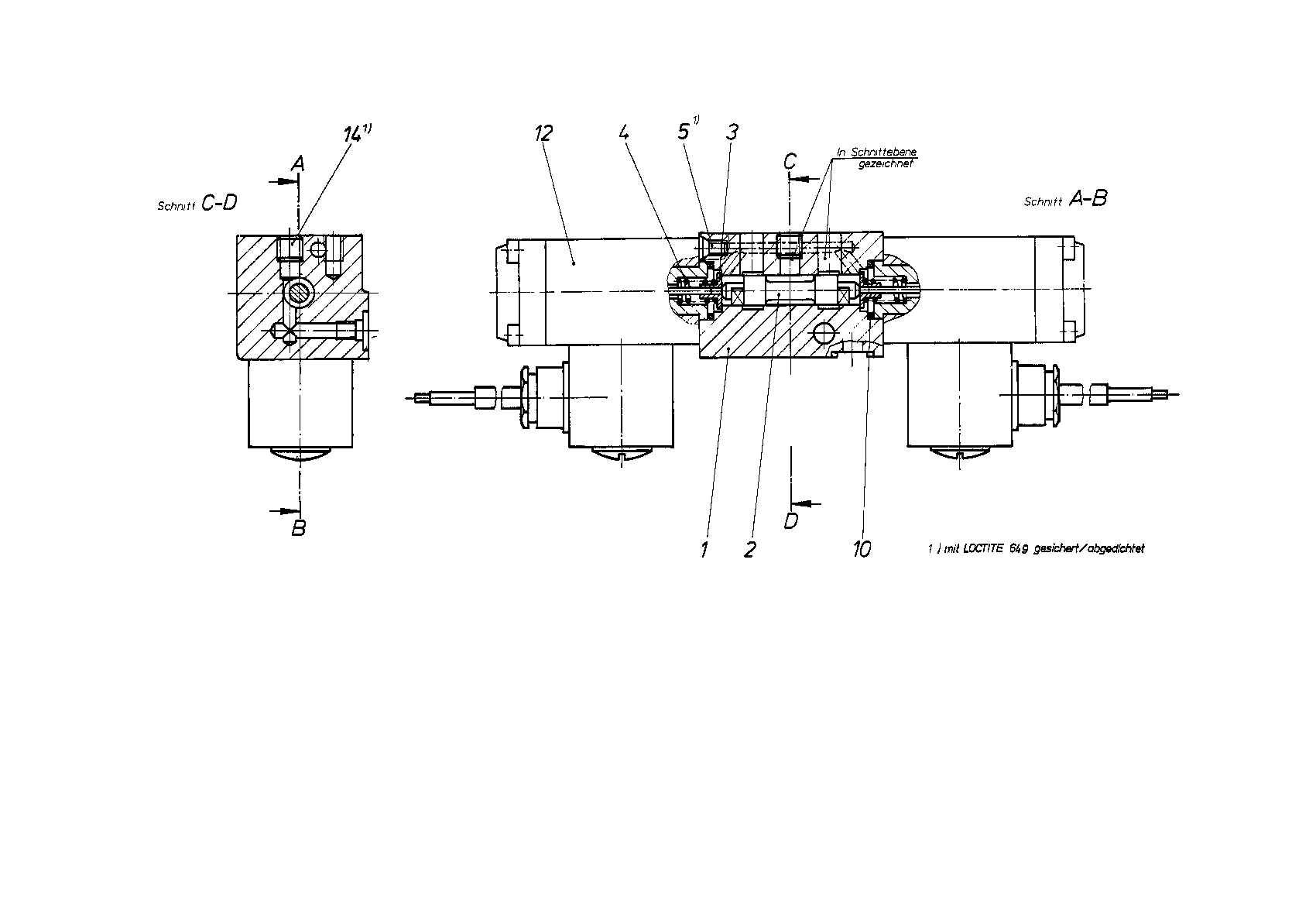

DIRECTIONAL-CONTROL VALVER909433922
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651450 | VALVE HOUSING | 1 | |
| R909071345 | CONTROL PISTON | 1 | ||
| R909069544 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| 5 | R909419974 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083734 | O-RINGD | 2 | ||
| R909433918 | SWITCHING SOLENOID Assembly parts list →L | 2 | ||
| 14 | R909083493 | SETSCREW | 1 |
