Assembly

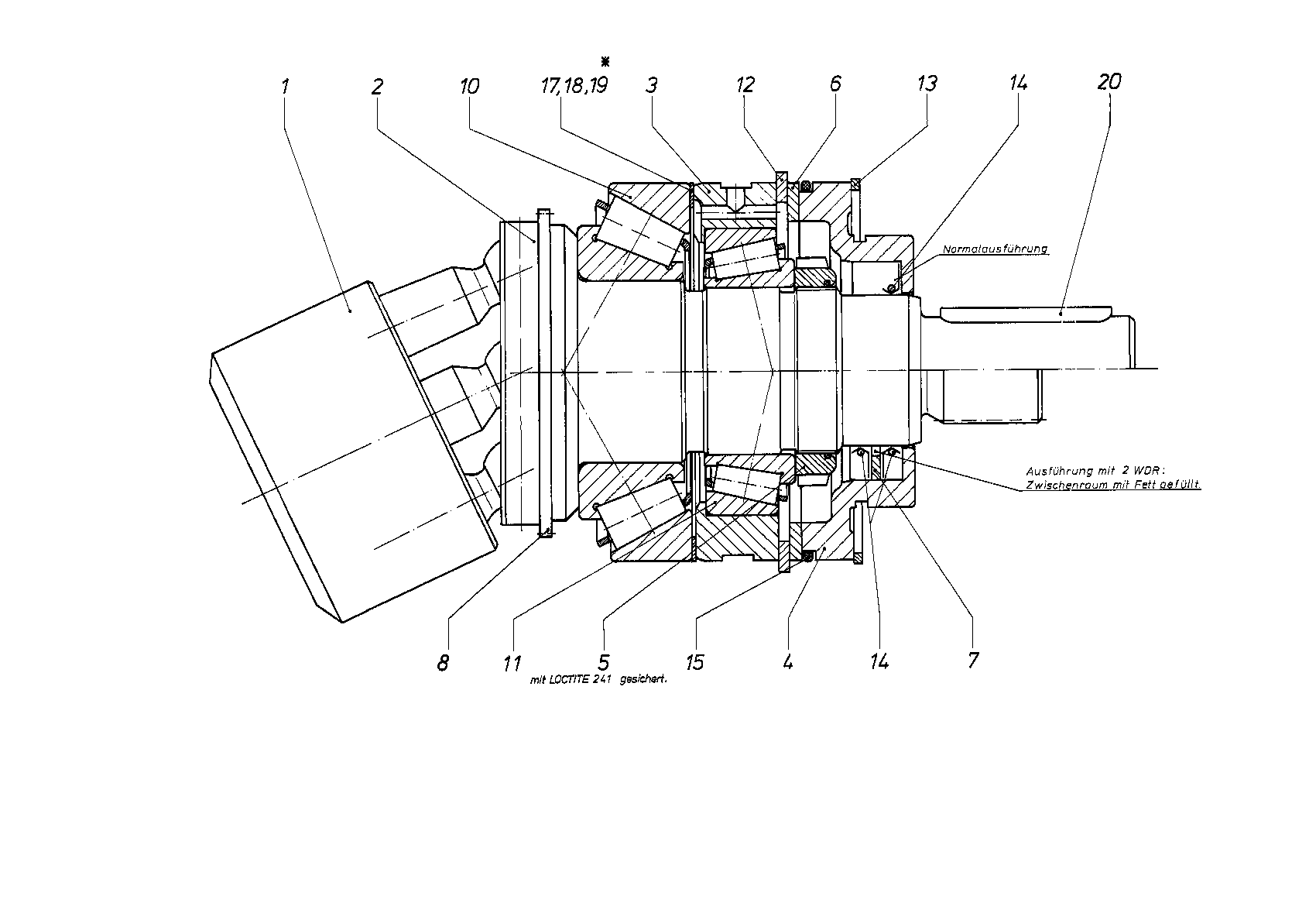

ROTARY GROUPR909434105
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429554 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909435263 | DRIVE SHAFT | 1 | ||
| R909408872 | BEARING RING | 1 | ||
| R909408870 | LOCKING RINGD | 1 | ||
| 5 | R913037932 | SLOTTED ROUND NUT | 1 | |
| 6 | R909156267 | SUPPORTING DISC | 1 | |
| 8 | R909436873 | ANNULAR GEAR | 1 | |
| R909154382 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154293 | TAPERED-ROLLER BEARING | 1 | |
| R909152143 | RETAINING RING | 1 | ||
| R909154361 | SNAP RING | 1 | ||
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R909086950 | O-RINGD | 1 | ||
| R909154359 | SHIM RING | 2 | ||
| R909154360 | SHIM RING | 1 | ||
| R909156296 | SHIM RING | 1 |
