Assembly

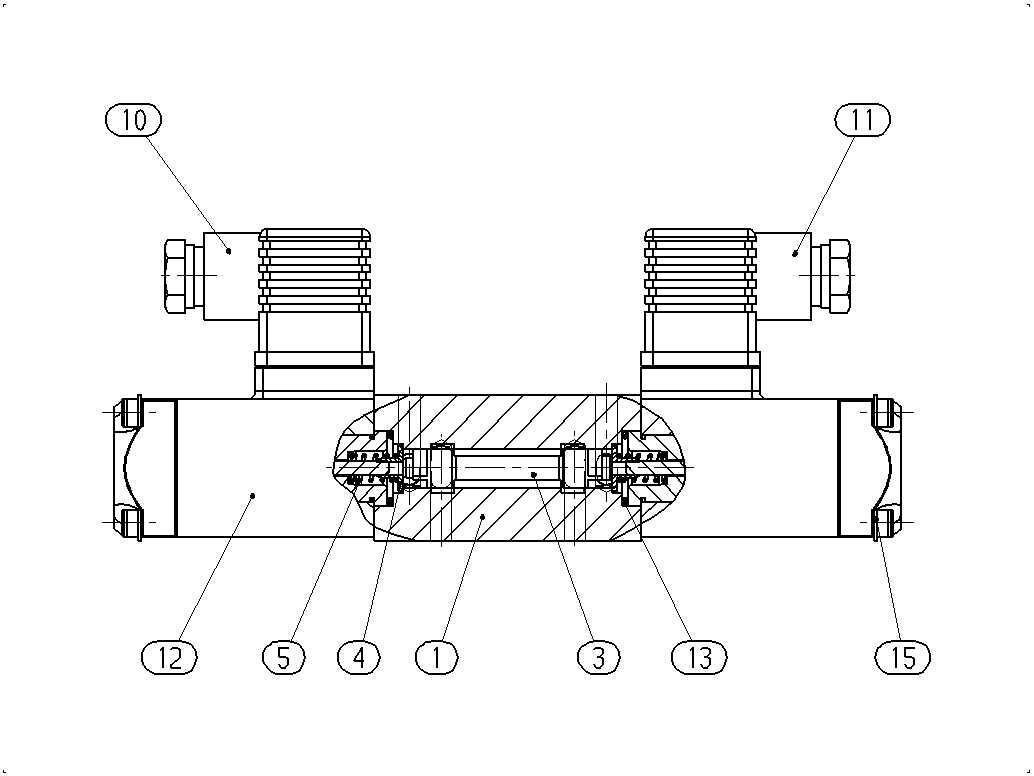

DIRECTIONAL-CONTROL VALVER909434114
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416344 | VALVE HOUSING | 1 | ||
| R909416376 | CONTROL PISTON | 1 | ||
| R909069544 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428266 | SWITCHING SOLENOID Assembly parts list →L | 2 | ||
| R909083734 | O-RINGD | 2 | ||
| 2916010109 | WASHER | 8 |
