Assembly

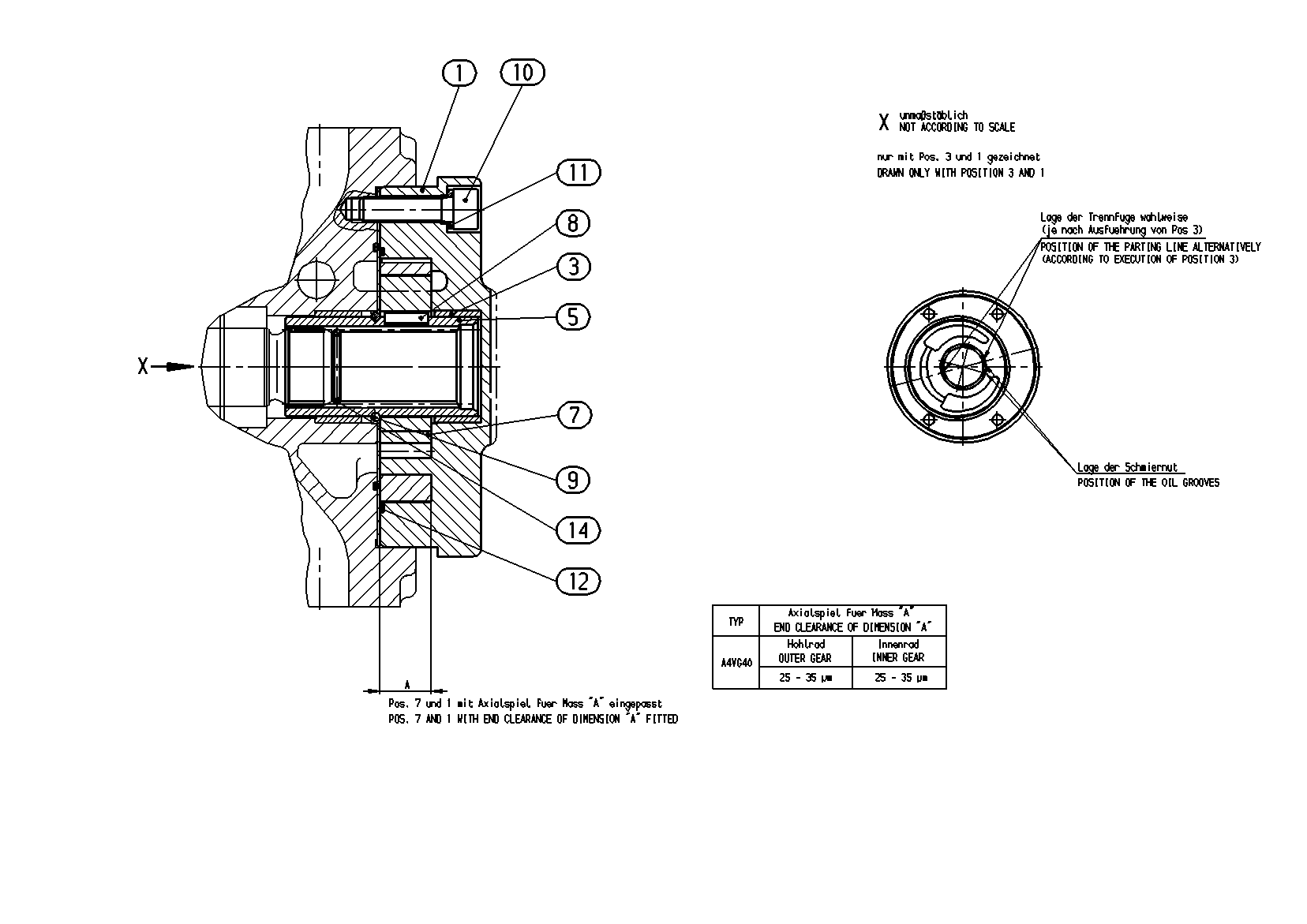

INTERNAL GEAR PUMPR909434117
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439884 | PUMP COVER | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R902252296 | THROUGH DRIVE SHAFT | 1 | ||
| R902006255 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 |
