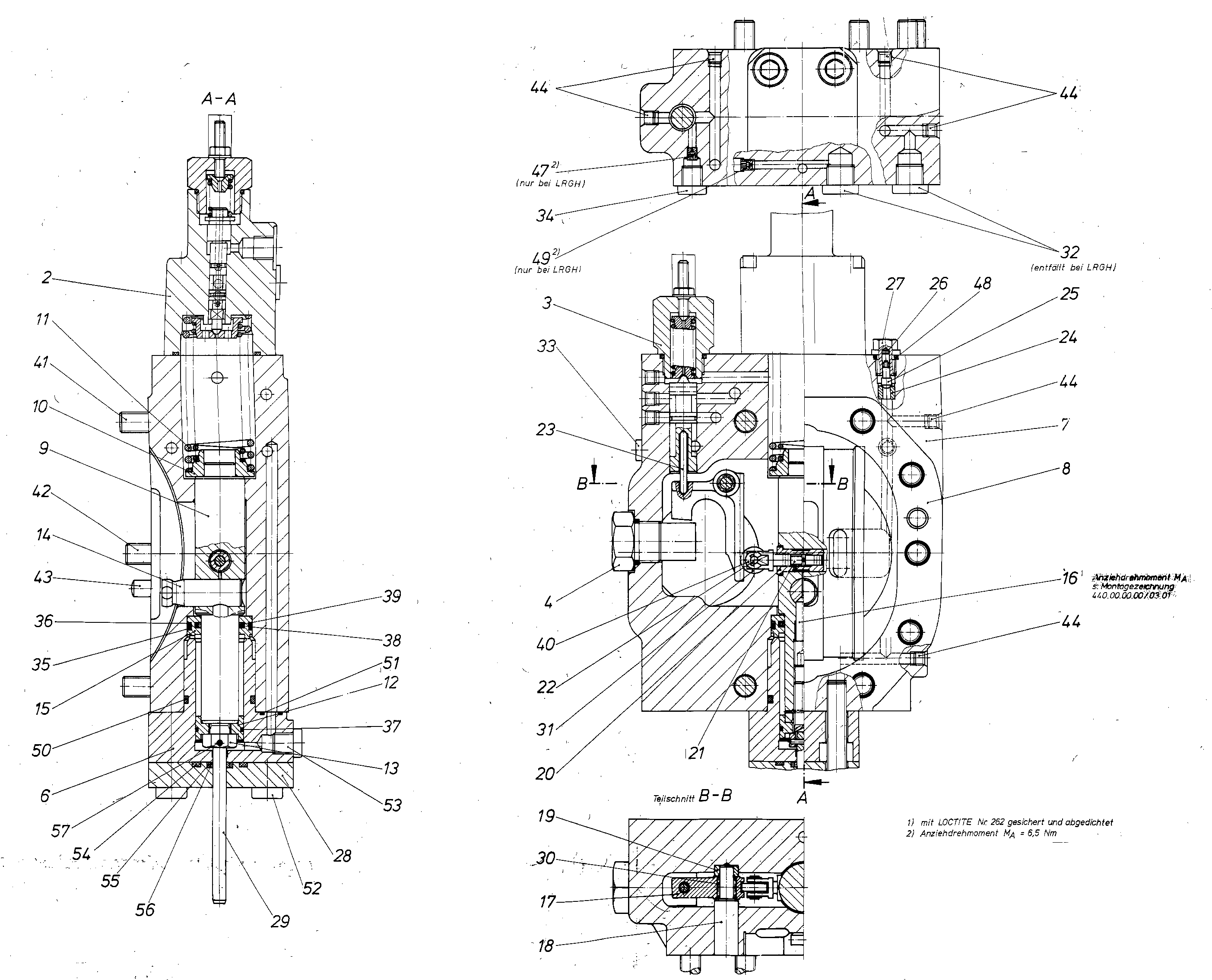

Assembly
CONTROLR909434140
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434923 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909438073 | CONTROL PART Assembly parts list →L | 1 | ||
| R909438074 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909440521 | GUIDE COVER | 1 | ||
| R909651206 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024644 | SEALD | 1 | ||
| R909430143 | POSITIONING PISTON | 1 | ||
| R909430145 | SPRING DISK | 1 | ||
| R909426025 | COMPRESSION SPRING | 1 | ||
| R909430148 | PISTON | 1 | ||
| R909440519 | HEXAGON SCREW | 1 | ||
| R909425485 | POSITIONING STUD | 1 | ||
| R909430147 | SEAL RING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909427509 | LEVER | 1 | ||
| R909414913 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909426934 | ADJUSTING BUSH | 1 | ||
| R909426935 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909430287 | PIN | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909415579 | VALVE CONE | 1 | ||
| R909426948 | COMPRESSION SPRING | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R909440520 | COVER | 1 | ||
| R909440518 | MEASURING ROD | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086334 | O-RINGD | 1 | ||
| R909157785 | BACKUP RINGD | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909157786 | ROD SEALD | 1 | ||
| R909152146 | O-RINGD | 1 | ||
| R909085810 | LOCKING WASHER | 2 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909156492 | NOZZLE | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| R909086553 | O-RINGD | 1 | ||
| R909086333 | O-RINGD | 1 | ||
| R909083136 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083798 | O-RINGD | 1 | ||
| R909086729 | O-RINGD | 1 | ||
| R909157655 | DUMMYD | 1 | ||
| R913017228 | SLOTTED SPRING PIN | 1 |
