Assembly

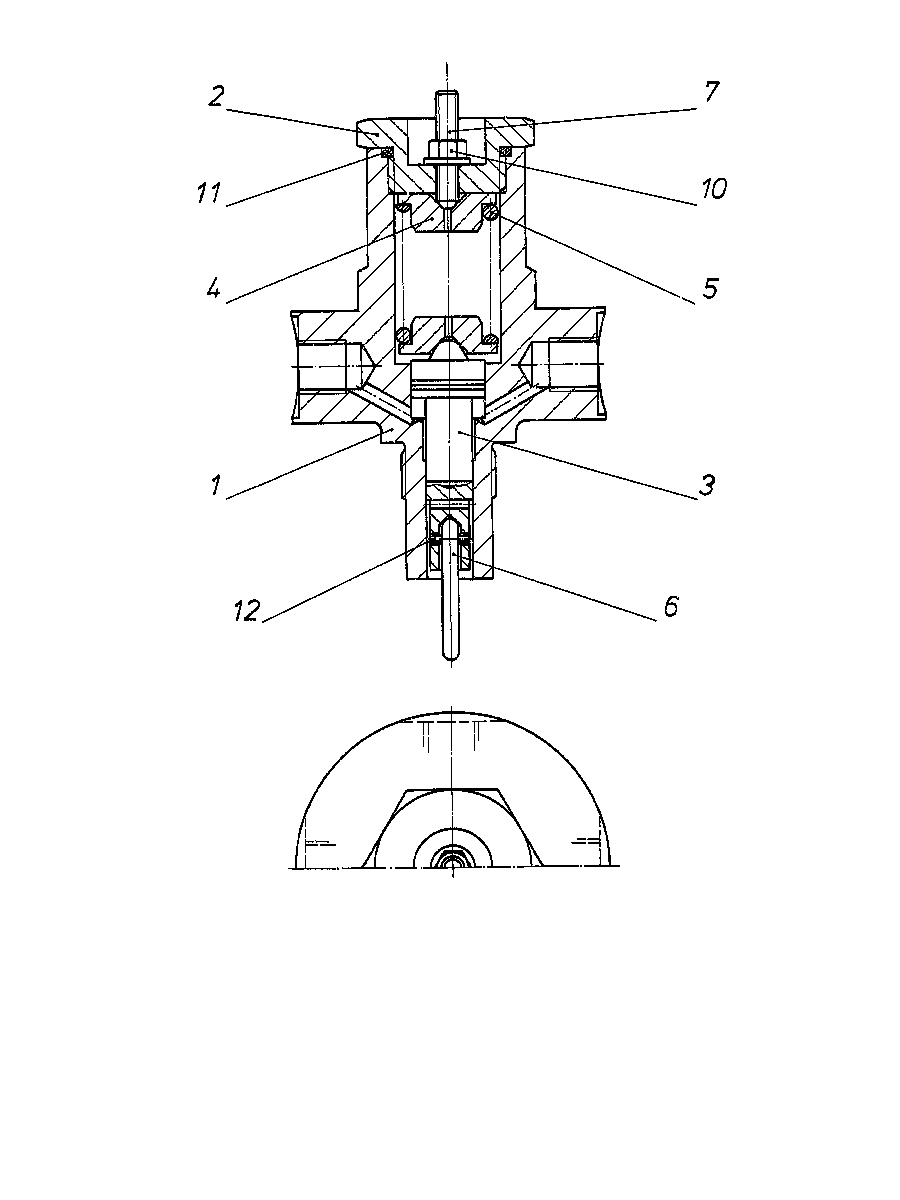

ADJUSTING PARTR909434141
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909435108 | THREADED PART | 1 | |
| 2 | R909435110 | SCREW PLUG | 1 | |
| 3 | R909435111 | PISTON | 1 | |
| 4 | R909435109 | SPRING DISK | 2 | |
| 5 | R909435171 | COMPRESSION SPRING | 1 | |
| 6 | R909425608 | PIN | 1 | |
| 7 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909083764 | O-RINGD | 1 | ||
| R909157511 | SLOTTED SPRING PIN | 1 |
