Assembly

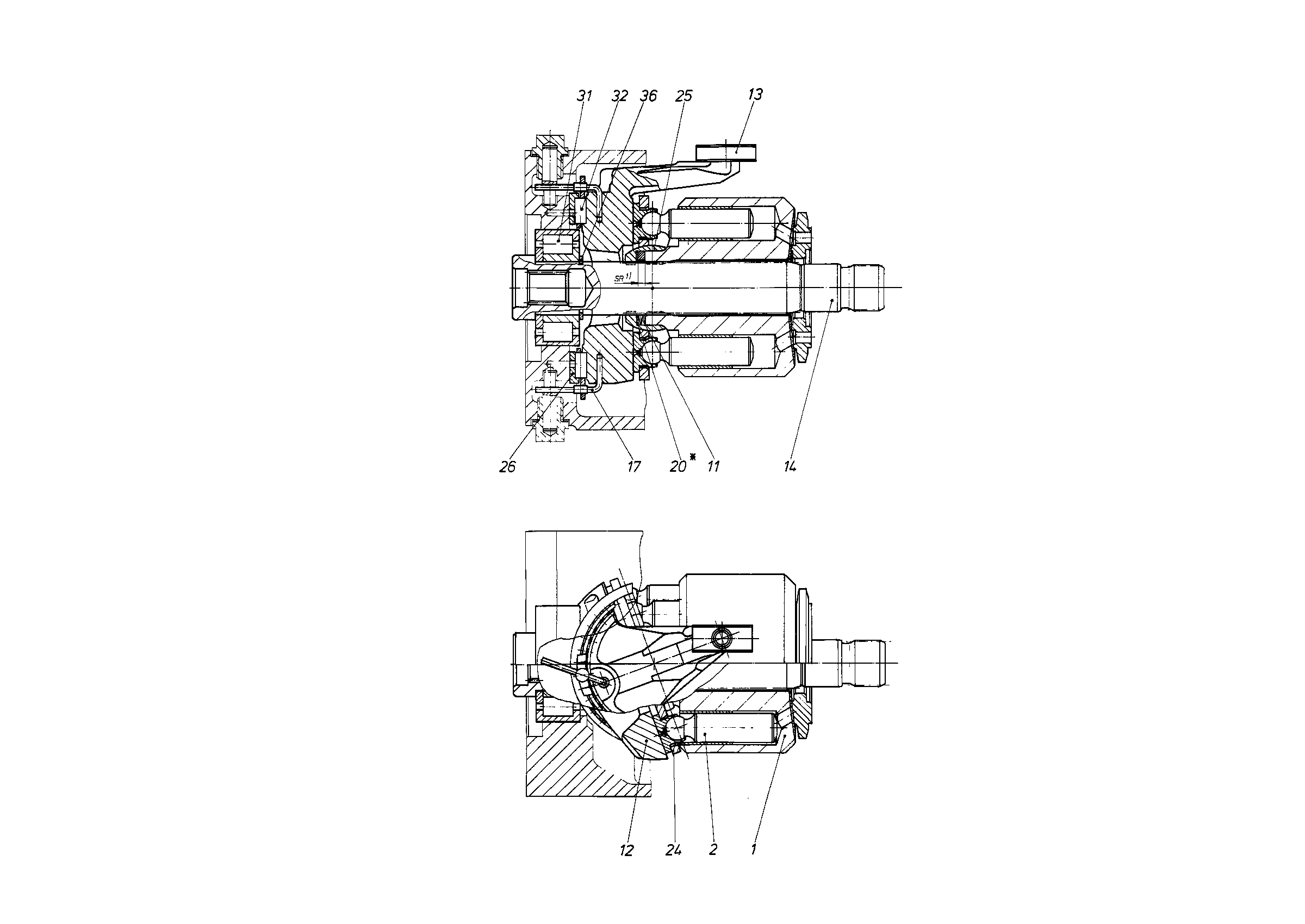

ROTARY GROUPR909434315
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012943 | CYLINDER Assembly parts list →L | 1 | ||
| 2 | R909431514 | PISTON PAD | 9 | |
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| R909443586 | CRADLE | 1 | ||
| R909449509 | SLIDER | 1 | ||
| 14 | R909426953 | DRIVE SHAFT | 1 | |
| R909413920 | WIRE | 2 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| 25 | R909431343 | RETAINING BALL | 1 | |
| R902066597 | BEARING SHELL PAIR | 1 | ||
| 31 | R909156605 | CYL. ROLLER BEARING | 1 | |
| 32 | R909156625 | CAGE PAIR | 1 | |
| 36 | R909083355 | RETAINING RING | 1 |
