Assembly

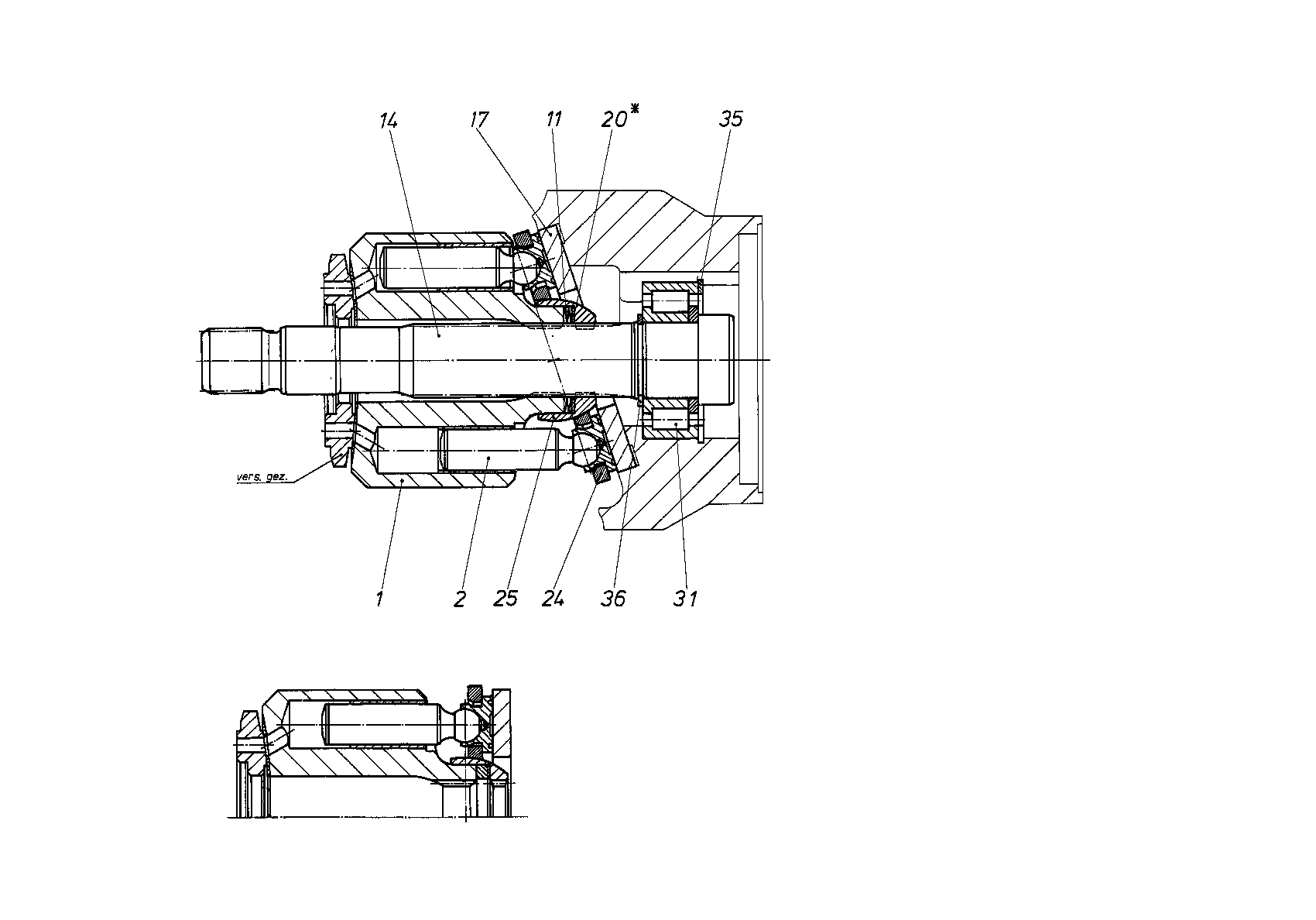

ROTARY GROUPR909434323
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909435450 | CYLINDER Assembly parts list →L | 1 | ||
| R909431514 | PISTON PAD | 9 | ||
| R902121243 | CUP-SPRING STACK | 1 | ||
| R909435542 | DRIVE SHAFT | 1 | ||
| R902161587 | SLIDING DISC | 1 | ||
| 20 | R909432999 | SHIM RING | 1 | |
| 20 | R909435000 | SHIM RING | 1 | |
| 20 | R909435001 | SHIM RING | 1 | |
| 20 | R909435002 | SHIM RING | 1 | |
| 24 | R902205399 | RETAINING PLATE | 1 | |
| 25 | R909431343 | RETAINING BALL | 1 | |
| R909157795 | CYL. ROLLER BEARING | 1 | ||
| R909083404 | RETAINING RING | 1 | ||
| R909083355 | RETAINING RING | 1 |
